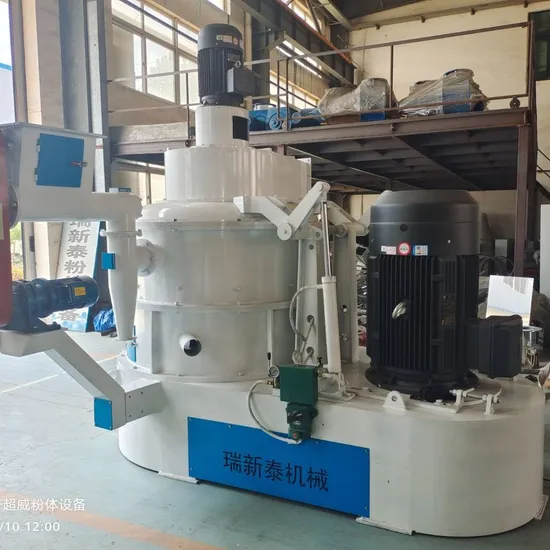

Rxt Crushing Machine-a Pulverizer Capable of Crushing a Variety of Substances

Product Description

Application Ultra-micro pulverizers can be used to grind a wide range of chemical substances, particularly suitable for the following types:
1. **Resins**: Includes various natural and synthetic resins used for manufacturing fine chemicals and composite materials.
2. **Pigments**: Such as organic and inorganic pigments, used to improve pigment dispersion and coloring effects.
3. **Coatings**: Includes raw materials for powder coatings and water-based coatings, enhancing the quality and coverage of the coatings.
4. **Plastics**: Used for grinding plastic granules to better suit further processing and compounding.
5. **Cosmetic Ingredients**: Such as talcum powder and alum, used in the preparation of various powdered cosmetics.
6. **Pharmaceutical Intermediates**: Grinding various pharmaceutical intermediates to improve the efficiency and quality of drug preparation.
7. **Pesticides**: Grinding solid pesticides to increase their effectiveness and uniform distribution in agricultural applications.
Grinding these chemical substances enhances the reactivity and uniformity of the raw materials, playing a critical role in the manufacturing process of various chemical products. The use of ultra-micro pulverizers not only improves product quality but also effectively reduces production costs and enhances production efficiency.

Company Profile Qingdao Ruixintai Machinery Technology Co., Ltd. is located in the beautiful coastal city of Qingdao, China. The company is a comprehensive manufacturing enterprise integrating technical research and development, production, sales, and after-sales service, specializing in the production of high-performance ultrafine pulverizers and related mechanical equipment. As a specialized manufacturer in the powder technology field, Ruixintai Machinery has established a strong reputation and position in the industry through years of technical accumulation and production advantages, backed by advanced proprietary domestic technology.
Product Description The material that has undergone initial cleaning and magnetic separation enters the crushing chamber through the spiral feeder for crushing. Due to the high-speed rotation of the grinding disk, the material is crushed by the impact of the hammer blade mounted on the grinding disk under the action of centrifugal force, and then spun at a very high speed onto the surrounding gear ring. Due to the small gap between the hammer blade and the gear ring, it is further crushed here. The crushed material is carried between the inner wall and the splitter cover by the airflow entering from under the crushing disc, and then enters the classification chamber. It is classified by the combined action of wind, gravity, and centrifugal force of the classification wheel. The separated coarse material returns to the crushing chamber from the inner cavity of the splitter cover and is re crushed. The fine material (finished product) is sucked into the classification impeller, enters the discharge chamber, and enters the air mesh system from the discharge port.

Product Parameters

No.	Item		RXT50
1	Motor Power(kW)		37/45
2	Air pipe diameter(mm)	Before cyclone	219
		After cyclone	219
		After pulse	219
3	Cyclone		X55-Φ600
4	Air locker		GFZY-5
5	Pulse dust collector		RXTMC28/42
6	Centrifugal fan		11/15kW

Model		RXT50
Capacity (t/h)	Common puffed fish (grass carp, tilapia) 80mesh>85%	≥ 0.4
	High grade puffed fish 80mesh>92%	≥ 0.4
	South American white prawn sauce 80mesh>95%	≥ 0.4
	Sea cucumber and abalone feed 300mesh>95%	≥0.2~0.3
Power(KW)		45

Model	RXT50
Graded rotational speed r/min	100~3000
Rotor diameter mm	500
Number of narrow V-belts in transmission	5
Number of hammers	8/12
Main motor power(kw)	37/45
Graded motor power(kw)	3
Feeding motor power(kw)	0.55

Our Clients
Other Product
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 10 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
It's the right time to E-mail and Make a Call Now!
