Water Ring Cutting Type Waste PVC Plastic Film Granulating Line

Product Description

Water Ring Cutting Recycling and Pelletizing Line
Working Prinple
Long strip of the material are cut off by the rotating blade when it is extruded from the die head and cooled with the floating water towards the dewatering machine, where they are dewatered and dried as product granules. (Additional air supply is available on request.) Main Features
1. The production of beautiful and evenly proportioned granules improves the quality of subsequent products
2. Save floor space compared to other pelletizing methods
3. Easy to operate, saving labour Product Parameters

Model	Screw size(mm)	Pellet size(mm)	Power of main Motor(kw)	Output(kg/h)
SJZ55	55/110	Φ3-Φ4	22	100-120
SJZ65	65/132	Φ3-Φ4	37	220-260
SJZ80	80/156	Φ3-Φ4	55	320-450
SJZ92	92/188	Φ3-Φ4	110	650-800

Remarks: all information above is only for reference; please gather the exact data by contacting us.
Detailed Photos

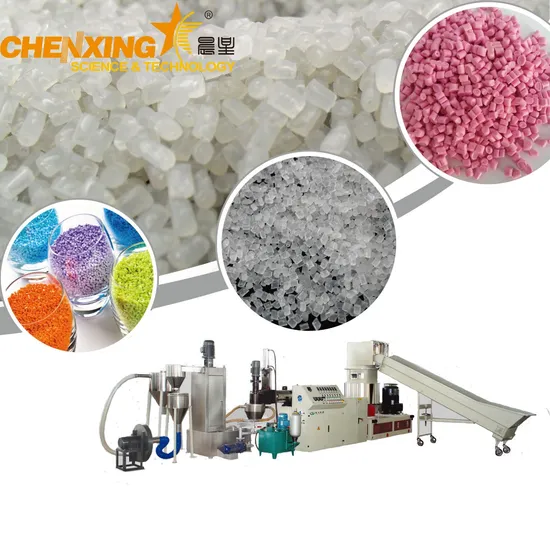

1. Machine&final product Display:
2.Factory Display:
3.Other hot sale product:
Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company.
Chenxing is willing to work with you to create a future together.
FAQ
Q: Are you factory or trading company?
A: We are a manufacturer professional in the plastic machinery industry over 20 years.
Q: How can you guarantee your quality?
A: We test each machine before delivery to ensure that it is in perfect condition.
Q: Do you have any after-sales service?
We offer 12 months warranty period. During this period, we can provide parts for free due to manufacture quality issues, human error is not included. Questions for Buyers
Pls think about the following questions and then send your messeage to my email. And we will offer you our quotation ASAP.1.The capacity(kgs per hour).
2.If the raw material is the bottle or film,do you need the washing line.
3.Please tell me the voltage in your factory default voltage is 380V,50HZ,3 phrase.
