Heavy Duty Dongfeng 6ton Emergency Rescue Fire Fighting Truck Wanter Tank Truck

Product Description

Hubei Shenghui Special Automobile Co.,Ltd.
Dongfeng 4*2 Fire Fighting Tuck Fire fighting truck also known as a rescue truck, is a vehicle designed and manufactured to be used by firefighters as needed, equipped with various types of firefighting equipment or extinguishing agents, and used by firefighting forces for firefighting, auxiliary firefighting or fire rescue.
Most national fire departments in China also use them for other emergency rescue purposes. Fire engines can transport firefighters to the scene of a disaster and provide them with a variety of tools for performing disaster relief tasks.
Modern fire trucks are usually equipped with steel ladders, water guns, portable fire extinguishers, self-contained breathing apparatus, protective clothing, demolition tools, first aid tools and other equipment, some of which also carry large fire-fighting equipment such as water tanks, pumps and foam fire-fighting devices.
The appearance of fire trucks in most areas is red, but there are also some areas where the appearance of fire trucks is yellow, some special fire trucks, which usually have alarm bells and sirens, warning lights and flashing lights on top. Common types of fire trucks include water tanker, foam fire truck, pump fire truck, aerial platform fire truck, ladder fire truck, etc.

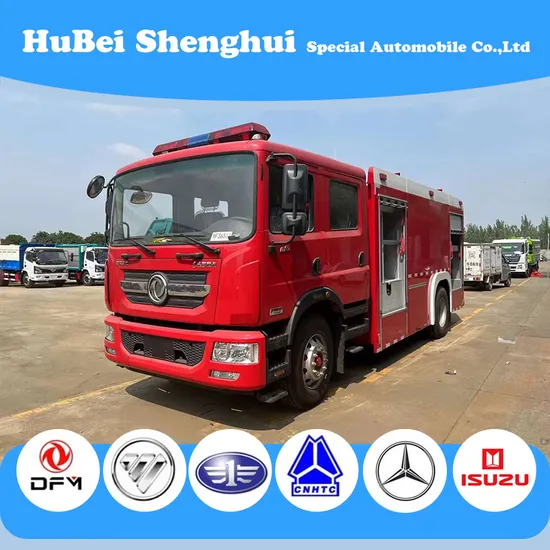

Products Display
Parameter Configuration

Vehicle description
Overall dimension	8190*2510*3340(mm)
GVW	16000kg
Curb weight	16000kg
Chassis brand	Dongfeng
Traction type	4*2,left/right hand drive
Chassis description
Chassis model	EQ1185DJ9CDF
Cab	Structure: flat-head, original double-row seat four-door passenger compartment. Seat setting: 2 persons in the front row and 4 persons in the back row.
Wheelbase	4700mm
Tire specification	295/80R22.5
Tire quantity	6+1
Engine	Engine model	B6.2NS6B230
	Emission level	Euro 5
	Displacement/output	6200ml/169kw
	Horse power	230hp
Gear box	Model	Dongfeng D9
	Number of gears	8 forward gears& 2 reverse
Brake system	Type	Drum
	Service brake	Dual-circuit compressed air brake
	Park brake	Power spring brake acting on rear wheel
	Auxiliary brake	WEVB
Axle	Front	6.5T
	Rear	11.5T
Suspension	Front	7- Leaf spring with shock absorber
	Rear	9+6-Leaf spring
Fuel tanker	Type	Steel fuel tanker
	Capacity	200L
Up-parts description
Tanker capacity	Water tanker	4000kg
	Foam tanker	2000kg
Standard configuration	1 set manhole with quick lock and open device; 1 set overflow device; 1 set fluid level gauge; 1 set drain outlet with manual controlled.
Fire pump	Model	CB10/40, normal pressure pump
	Flow	40L/s
	Pressure	1.0Mpa
	Suction depth	≥7m
Fire monitor	Model	PL32
	Flow	40L/S
	Pressure	1.0MPa
	Range	≥50m
	Rotation angle	Horizontal 360° Pitch -35°~70°
Other configuration	Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedal and electric system. Other equipment.

FAQ1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
2. Q: How many years of your company's service, especially after-sale service?
A:Hubei Shenghui is a long-term business partner of CLW group and our group has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.
3. Q: Is there any advantages of your price?
A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.
4. Price term: FOB, CIF.
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.
7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.
