Chinese Mini CNC Lathe Machine Ck6130

Product Description

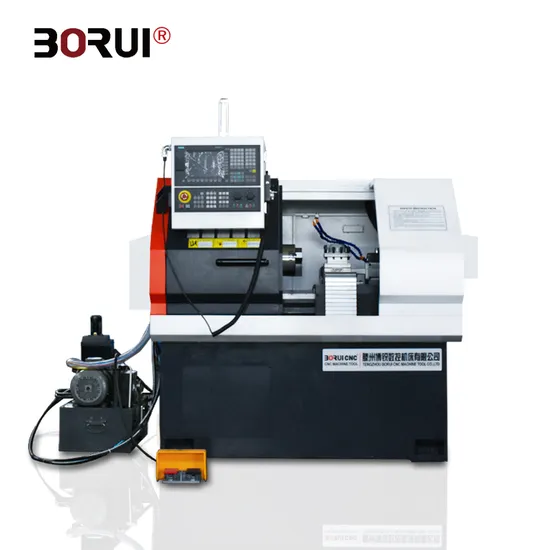

Chinese mini cnc lathe machine CK6130
Product Description
This machine is widely used in processing and manufacturing the electrical appliance, instrumentation industr, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.
CNC Lathe Features:
1.Frequency conversion stepless speed regulation
2. With servo system
3. Four position electric turret
4. Standard configuration: spring chuck and chuck double use
5.Optional configuration: hydraulic chuck, gang type tool post
The main specification :

Specifications	unit	CK6130	CK6132
Max. swing over bed	mm	Φ300	Φ320
Max. swing over cross slide	mm	Φ100	Φ90/Φ110
Max. processing length	mm	chuck260/spring chuck320	chuck290/spring chuck400
X/Z axis travel	mm	300/350	300/380
Spindle nose		A2-5	A2-5
Spindle bore	mm	Φ48	Φ48
Bar capacity	mm	Φ41	Φ41
Max. spindle speed	rpm	2500	2500
Chuck size	mm	160	160
Spindle motor	KW	4	4
X/Z axis repeatability	mm	±0.005	±0.005
X/Z axis feed motor torque	N.m	X:4 Z:4	X:4 Z:4
X/Z Rapid traverse	mm/min	X:8 Z:10	X:8 Z:10
Tailstock quill dia.	mm	Φ52	Φ60
Quill traverse	mm	90	100
Quill taper	#	MT4	MT4
Tool post type		Four position electric turret	Four position electric turret
Cutting tool shape size	mm	16×16	16×16
Guide form		Double mountain	Double mountain
Total power capacity	KVA	7	7
Machine dimension (L×W×H)	mm	1600×1100×1650	1750×1150×1650
Net. weight (about)	kg	950	1200

Details Display
Company Profile
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools

FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

Contact us
