Product Description

Product Description Automatic Total Station Price with High Precision Survey Instrument
overview
Rich functions - Equipped with rich measurement applications, data storage, parameter setting and other functions, suitable for a variety of professional measurement;
Absolute digital dial;
Equipped with absolute digital dial, the instrument can be directly measured after starting. Even if the power supply is reset midway, the azimuth information will not be lost;
Powerful memory management;
Large capacity memory, and can easily carry out file system management, to achieve data increase, delete, transmission, etc.;
Prism-free ranging; With the prism-free ranging function of laser ranging, this series of total station can directly measure objects of various materials and different colors (such as walls of buildings, poles, wires, cliff walls, mountains, soil, wooden piles, etc.) at a distance, quickly and with high precision. For those targets which are not easy to reach or impossible to reach at all, the prism-free ranging function can be used to complete the measurement task well.
Fast switching between prism mode and prism-free mode;
Special measuring procedure:
In addition to the basic measuring function, but also has a special measuring program, can be suspended height measurement, eccentric measurement, side measurement, lofting, rear intersection, area measurement calculation, road design and lofting work, can meet the needs of professional measurement;
Interchangeable eyepiece:
The eyepiece of this instrument is changeable, which can be easily equipped with curved eyepiece, which is convenient for users to observe the direction of the zenith and the measurement of high-rise buildings.
Laser point optional:
Convenient station indication function, easy to set up stations;
Language optional:
There are five languages available: English, French, Italian, Turkish and Spanish.
Interface brightness:
The screen brightness can be adjusted for night operation. There are four levels adjustable: minimum brightness, low brightness, medium measure and maximum brightness.

Functions Common function
Quick measurement:
Contains commonly used measurement functions, such as Angle measurement, distance measurement and coordinate measurement.
Application measurement:
There are three kinds of lofting: polar coordinate lofting, orthogonal lofting and coordinate difference lofting
Rear rendezvous
Opposite side measurement: fold line opposite side, ray opposite side
Area survey
Suspension height measurement
Coordinate measurement includes coordinate forward calculation, coordinate inverse calculation, azimuth-azimuth intersection, azimuth-range intersection, range-range intersection, four-point intersection, aligning, measuring point bias, extension
Road includes: road management, road lofting
Reference elements: reference lines (grid lofting, vertical and horizontal migration measurement, orthogonal lofting, subsection lofting), reference arcs (measuring arc and diameter distance), reference plane
Product Parameters

Model	PTS121A
Angle measurement
Principle of measurement	Absolute coding
Minimum reading	1"
Accuracy	2"
Telescope
Magnification	30X
Field Angle	1°30'
Minimum visual distance	1.5m
Cross wire	Lighting
Compensator
System	Two axis compensator
Compensation range	±3'
Accuracy	1"
Distance measurement (IR)
Single prism (atmospheric fair/good condition)	4000m/5000m
Use reflector	1000m
Accuracy	2mm+2ppm
Measurement time (precision measurement/tracking)	0.8s/0.4s 0.8s/0.3s
Prism-free ranging (RL)
Ranging (using Kodak White card with 90% reflectivity)	400m/600m: 0.8s/0.4s (measuring time)800m/1000m: 0.8s/0.3s(measuring time)
Accuracy	3mm+2ppm
Measuring time	1.5s
Communication
Memory data capacity	20000 data points/SD card
Interface	Standard RS232 serial port/Mini USB/ USB flash drive
Wireless communication	Bluetooth
Data format	ASCII
Operation
System	Real-time operating system
Keyboard	Double sided digital backlit keyboard blue
Laser point counter
Type	Laser point, 4 level brightness adjustment (optical point can be configured)
Accurancy	1mm((When the instrument is 1.5m high)
Working environment
Operating temperature	-20ºC ~ 50ºC(-4F ~ 122F)
Storage temperature	-40ºC~70ºC (-40F ~ 158F)
Barometric input	Manual input
Waterproof and dustproof	IP55 (IEC60529)
Power supply
Battery type	High energy lithium electricity
Voltage/capacity	7.4V(DC)/ 3000mAh
Operating time of ZBA-400	16-hour continuous ranging mode (measurement once in 30 seconds))
Number of measurements	About 12,000 times

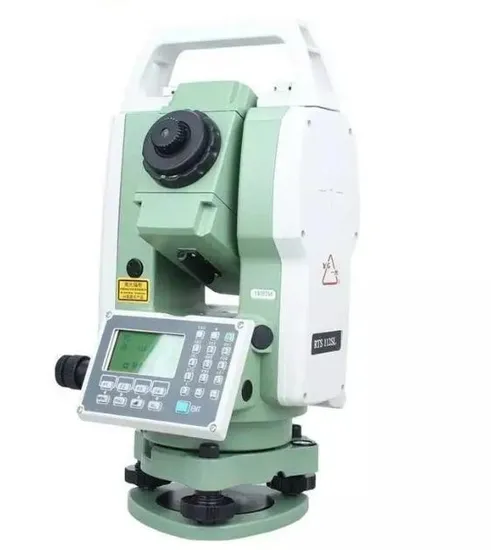

Detailed Photos
