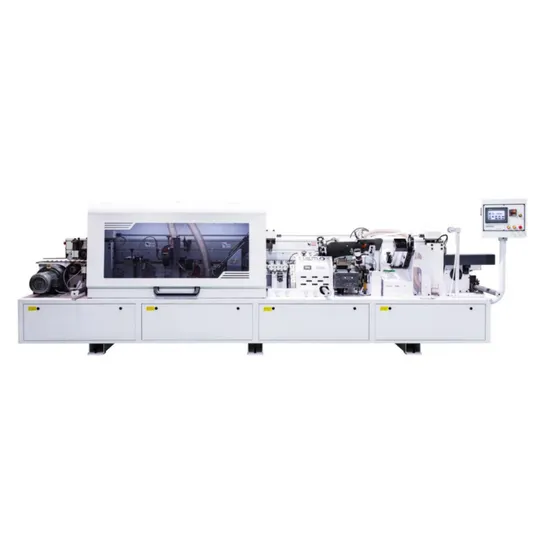

Hicas Woodworking Full Automatic Bevel Forming Edge Bander for Furniture

Product Description

Hicas Woodworking Full Automatic Bevel Forming Edge Bander for Furniture
Product Description
Highlight:
1> Bevel-edged and straight-edged all-in-one machine.
2> One-click switching with touch screen.
3> One-time molding and edge sealing.
4> Easy Operation with Best Performance.
Advantages:
1,45 degree cutting using multiple saw blades,Easy to replace, independent vacuum space
2,Equipped with edge-banding warming box, suitable for low-temperature areas, with better bonding effect
3,Customized funnel-type glue coating shaft can directly apply glue to the board , protect the edge banding and make the bonding better. Product Parameters

Working width	≥120mm
Working length	≥200mm
Panel thickness	9-25mm
Edge thickness	Pvc 0.3-2.0mm Veneer 0.3-0.6mm
Bevel angle	45° (Unadjustable)
Fixed feeding speed	13m/min
Total power	12kw
Dimension	5280*900*1600mm
Working pressure	0.65Mpa
Weight	1800kg
Voltage	220V 60hz 3phase

Detailed Photos

45°Milling device	Gluing - Press device
Three pcs saw blade milling for 45 degree surface ,helpful for saw dust collect.This device with independence dust collect ,can avoid the saw dust fly outside .With checking window ,can check the working details easily.(90 ° edge can be adjust 3-10mm)	90 degree and 45 degree edge glue at same time and then press at same time . It can largely save the time that glue expose in the air , so can avoid the glue loose wet and hard to stick problem .The 45degree and 90 degree press with separate press wheel , the power is drive by the air cylinder.

Edge slotting device	Heating device
Edge is press by the air cylinder , more stable and easy adjust . This device is used for cutting a slot for folding parts , so it can ensure the connect part more smooth .(The slot position can be adjust , and the slot depth also can be adjust .)	With infrared lamp , reasonable angel angel can soft the edge and can heat the glue and same time , can ensure the edge surface more perfect.

End cutting	Scrapping
Adopt normal high matching technology structure, through precise linear guide movement, adopt automatic tracking by mould and fast cutting structure of high frequency and high speed motor, ensure smooth cutting surface.	It is used to eliminate the wavy marks caused by the cutting process of trimming non-linear motion, so that the lower parts of the plate are more smooth and neat. At the same time, the size of the arc angle can be adjusted to make the sealing effect more perfect.

Trimming unit	Polishing unit
Eliminate the redundant tape in the top and bottom sides of board.	Clean the finished boards with a cotton polishing wheel. Remove excess glue and smooth the end face of sealing edge by polishing.

Spare Parts

Electrical spare parts
Imported trachea is highly flexible and does not burst in winter.
Frost, anti-fatigue cable, to a greater extent to extend the service life.
Rack with ship plate, cold plate welding, annealing after welding processing, the machine in the production process without the impact of internal stress deformation.
Beam using high-strength aluminum alloy heavy-duty structure, run-time press more stable and efficient.

Final Product
Related Products
Company Profile
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer & feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.Our machines have CE Certifications
10.Packaging & Shipping
11.Our after-sale service
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
