Bed Type Universal Swivel Head Milling Machine

Product Description

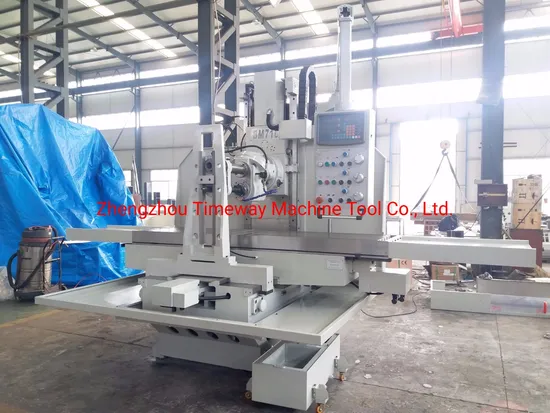

Bed Type Universal Milling Machine BM716
Features:
* The universal milling head can be adjusted to any angle in the range of 360 ° including horizontal.
* The sturdy cast iron construction with a weight of 12,000 kg allows a maximum table load capacity of up to 3,000kg.
* Servo drives on all axes, the automatic feed rates are infinitely variable in the X- and Y-axis.
* Simultaneous movement of several axes.
* Rapid traverse in all axes.
* Automatic central lubrication.
* Hanging panel for optimum operating comfort.
* Powerful hydraulic clamping in X-, Y-and Z-axis.
* Good accessibility to the machine table and the cutter head facilitate the loading and unloading as well as work on the milling head.
* A wide array of uses are possible with this machine through optional special accessories (eg. dividing head, rotary table, tailstock).
Standard configuration:
Collet chuck ISO 50 with collets 4, 6, 8, 12, 16, 18, 22, 26 mm
Reducing sleeve ISO50 / MK4
Coolant system
Foundation bolts M24 x 500
Operating tools
Manual

Specification	Unit	BM716
Table size	mm	2500 × 575
Table travel (X,Y,Z)	mm	1800 (2000) × 600 × 900
Min. distance from hor. spindle axis to worktable surface	mm	30
Min. distance from vertical spindle nose to worktable surface	mm	49
Distance from vertical spindle axis to column guideway	mm	110
Spindle speed range	rpm	40-1200
Number / Width / Distance of T-slot	mm	3-22-152
Spindle taper	-	ISO 50
Longitudinal, transverse feed speed range	mm/min	20-2200
Rapid feed speed (X,Y)	mm/min	3000
Feed speed range	mm/min	12-1320
Rapid feed speed (Z)	mm/min	1800
Spindle motor power	kw	11
Max. load of worktable	kg	3000
Overall dimension (L×W×H)	mm	4300 × 3200 × 3300
Machine weight	kg	10000
