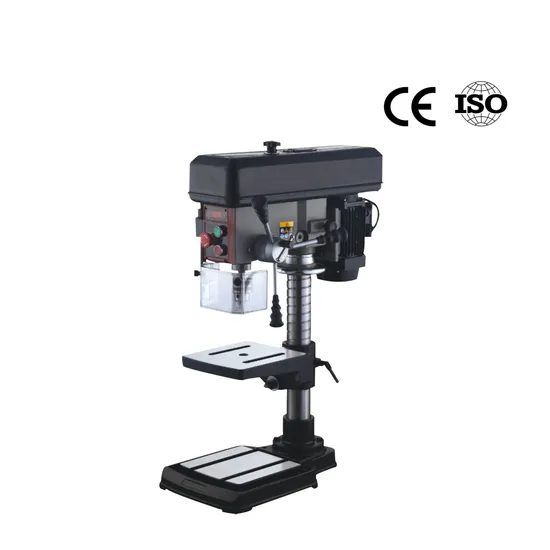

Column bench drill ZK-45A(L)x2 2 axis CNC drilling machine industrial type drill press machine with rotary table

Product Description

Product Description
CNC Column Drilling Machine ZK-45A(L)x2

Model	ZK-45A(L)x2
Max. Drilling capacity(mm)	45/40
Max.spindle travel(mm)	140
Morse taper of spindle nose	MT.4
Spindle speeds(r/min)	70-150-260- 370-825-1430
Spindle feed motor	servo motor: 10N.m(1:20)
Dividing feed motor	servo motor: 6N.m
Rapid feed(mm/min)	Stepper motor: W4000, servo motor: W7500
Positioning accuracy(mm)	0.06
Repeat positioning accuracy(mm)	0.03
Operating system	2 axis(servo)
Size of base worktable(mm)	500/450
Distance from spindle axis to column surface(mm)	325
Distance from spindle nose to base surface(mm)	220-670
Main Motor power(kw)	2.2
G.W/N.W(kg)	700/600
Ship measurement(cm)	150x88.8x155.3

Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
