Industrial Horizontal Paint Coating Sand Mill Printing Ink Bead Mill Sand Grinding Equipment for Cosmetics

Product Description

Product Description

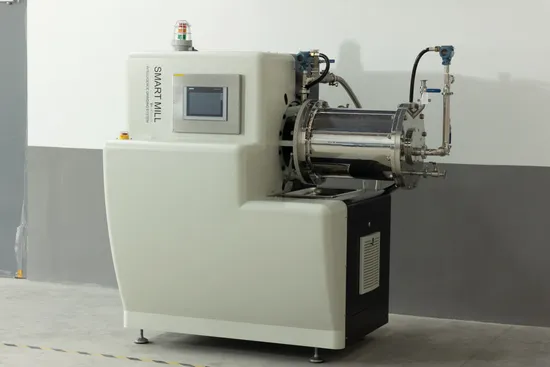

Meet the Hoosun Precision SMD 25 Grinding Machine, your smart solution for grinding micro and nano materials. Designed for precision and efficiency, this machine ensures top-quality standards in your manufacturing processes.
Performance Advantages
High Precision Lapping: Achieve a uniform and smooth surface finish critical for SMD components, thanks to advanced lapping technology. Automated Control: Simplify operations and minimize errors with our automated control system. Customizable Settings: Easily adjust pressure, speed, and duration to meet specific material needs. Durable Construction: Built with high-quality materials for long-lasting performance in tough environments. User-Friendly Interface: Manage with ease using an intuitive control panel, boosting productivity. Technical Specifications:
Fineness: 100nm - 10μm Zirconia Bead Diameter: 0.1-0.6mm Separation System: Sieve Separation Optional Materials: Tungsten carbide, Polyurethane, Zirconia, Silicon carbide, Silicon nitride Efficiency Highlights:
Ultrafine Grinding: Achieve fineness below 200μm with 2-3 times the output of ordinary sand mills. Independent Operation: Separate material grinding and separation for precise results. Applications:
Nano materials, MLCC, Lithium batteries, Silicon carbon electrodes, Alumina, Ceramic inks Why Choose Hoosun?
Precision: Ensure exact specifications with advanced lapping. Automation: Streamline your processes and reduce errors. Flexibility: Customize settings for diverse material needs. Durability: Invest in a robust machine built to last. Ease of Use: Increase productivity with a user-friendly interface. Equipment Specifications: Model Chamber Rev. Motor Power Bead Diameter Bead Rate Batch Capacity

SMD10	10L	0-15m/s	13.5/15KW	0.2 - 2.0mm	80 - 85%	50 - 250L
SMD25	25L	0-15m/s	18.5/22KW	0.2 - 2.0mm	80 - 85%	100 - 700L
SMD50	50L	0-15m/s	45KW	0.2 - 2.0mm	80 - 85%	200 - 1500L
SMD100	100L	0-15m/s	55/75KW	0.2 - 2.0mm	80 - 85%	<2500L
SMD150	150L	0-15m/s	75KW	0.2 - 2.0mm	80 - 85%	500 - 3500L
SMD200	200L	0-15m/s	75/90KW	0.2 - 2.0mm	80 - 85%	1000 - 5000L
SMD300	300L	0-15m/s	90/110KW	0.2 - 2.0mm	80 - 85%	>7500L
SMD600	600L	0-15m/s	250KW	0.2 - 2.0mm	80 - 85%	>10000L
SMD1200	1200L	0-15m/s	355/450KW	0.2 - 2.0mm	80 - 85%	>20000L
