Small Household Surface Grinder, Mini Manual Surface Grinding Machine Mj7115, High Precision Surface Grinder Machine

Product Description

Product description:

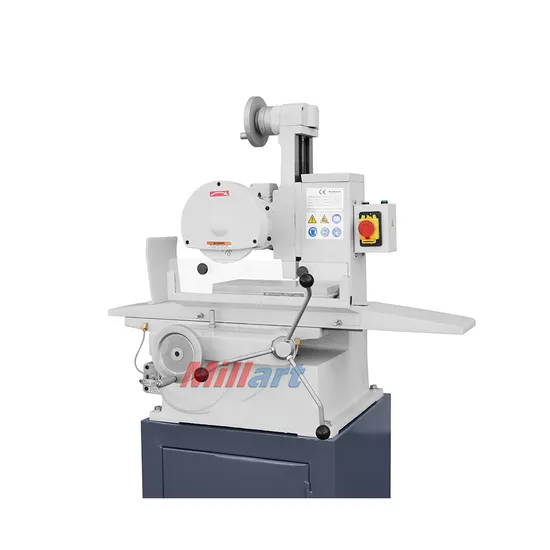

MJ7115 surface grinder is designed to grind various horizontal and vertical surfaces of the workpieces by the periphery and end faces of the grinding wheel respectively.
It can also grind contoured workpieces with shaped wheel or craftsmanship apparatus.
With small dimensions, light wight, smoothly safe operation and convenient maintenance, etc.,
It can be used in small enterprises, repairing shops, household industry, lab, teaching demonstrations, etc.
Integrated grinding head of high quality, high rigidity and accuracy, small size and light weight, easy operation and maintenance, centralized lubrication for oil pump

Technical parameter :
Specification:

SPECIFICATIONS	MJ7115
Longitudinal stroke	340mm/14"
Cross stroke	170mm/7"
Vertical stroke	210mm/8"
Table size(W*L)	152*304mm/6"*12"
Width of T-slot	1-12mm/1-0.47"
Cross feed per graduation	0.02mm/0.001"
Cross feed per round	2.54mm/0.1"
Vertical feed per graduation	0.025mm/0.001"
Vertical feed per round	1.25mm/0.05"
Size of grinding wheel	180*31.75*13mm
Motor power	0.55kw
Roughness	1.6μm
N.W. / G.W. of machine	210/260kg
N.W. / G.W. of stand	30/54kg
Overal dimensions of machine	930*780*730mm
Case dimensions of machine	1100*760*860mm
Case dimensions of stand	720*550*550mm

Standard accessories :
Grinding wheel,
Grinding wheel chuck,
Grinding wheel dresser,
Pad irons,
Operate tools .
Optional accessories :
Stand base
Permanent magnetic chuck
Precision flat
Ball leadscrew model
