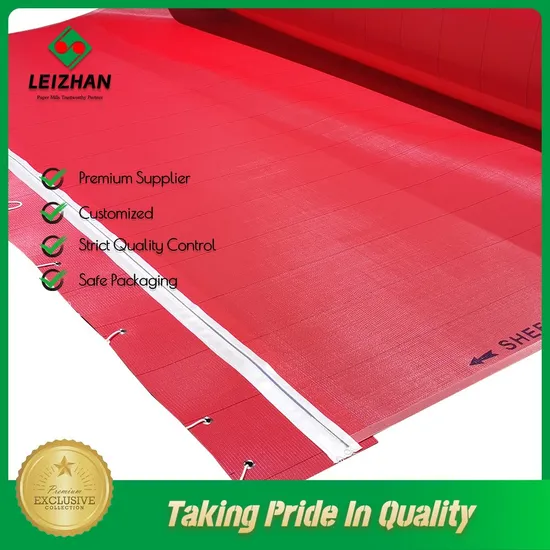

Paper Mill Polyester Woven Flat Yarn Round Spiral Sldf Dryer Screen Mesh Wire Fabric for Tissue Toilet Paper Making Machine

Paper Mill Polyester Woven Flat Yarn Round Spiral Sldf Dryer Screen Mesh Wire Fabric for Tissue Toilet Paper Making Machine

US$9.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
LZPMC
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Surface Treatment
Heat Setting
Manufacturing Process
Woven
Material
Polyester
Machine Speed
Below 2000m/Min
Layer
1/2/3
Paper Kinds
All Kinds of Paper
Srtucture
Woven and Needling
Transport Package
Standard Seaworthy Package
Specification
customized
Trademark
LEIZHAN PMC
Origin
China
HS Code
5911
Production Capacity
50000sets/Year

Packaging & Delivery

Package Size
300.00cm * 30.00cm * 10.00cm
Package Gross Weight
50.000kg

Product Description

Product Description Flat yarn dryer screen's application in paper machine:
Polyester dryer fabric is made with the latest non-woven technology and equipment in the world. Polyester material is one of the most advanced drying and filtration materials in the world. Polyester screw dry net adopts high-quality anti-hydrolysis polyester mono-filament, which is formed by forming, weaving, finishing, and shaping. It has unique properties:
1) Acid resistance, alkali resistance, wear resistance, high-temperature resistance, and long service life, which is several times the woven dry blanket, canvas, and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability, and high heat transfer efficiency.3) Easy to install and use, with no imprinting on the interface, and no deformation during use.
Detailed Photos
Product Parameters
Polyester Dryer Fabric
Weaving Kind Fabric Model Wire Diameter mm Density(root/cm) Tensile strength(N/cm) Air Permeability Weight
Kg/m2
Thickness
mm
Warp Weft Warp Weft Surface Joint Socket Screw-ring interface M3/m2h CFM
Flat wire dryer fabric 4106-2 0.35x0.68 0.50 19.6 15.7 2200 1500 900 5500 345 1.10 1.62
15505 0.25x0.40 0.50 17 13.5 2000 1500 900 6500 406 0.75 0.83
20654 0.33x0.52 0.65 22 7.5 2000 1400 800 10000 625 1.02 1.35
18688 0.30x0.58 0.35 20 18.5 2000 1400 800 1600 100 1.2 1.40
0.68
16904 0.29x1.06 0.90 15.2 8.6 2600 1800 1500 1920 120 1.33 1.54
0.98
Round Dryer Fabric Round yarn dryer screen's application in paper machine:
It is a high-breathing fabric applied to the dryer section of the long-wire paper machine and the board machine. It is made of various plastic synthetic fibers as the main raw material and is processed by weaving and heat setting. Special resin treatment is carried out as needed, and the joints of the net are also advanced.
1) Acid resistance, alkali resistance, wear resistance, high-temperature resistance, and long service life, which is several times the woven dry blanket, canvas, and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability, and high heat transfer efficiency.3) Easy to install and use, with no imprinting on the interface, and no deformation during use.
Polyester Dryer Fabric
Weaving Kind Fabric Model Wire Diameter mm Density(root/cm) Tensile strength(N/cm) Air Permeability Weight
Kg/m2
Thickness
mm
Warp Weft Warp Weft Surface Joint Socket Screw-ring interface M3/m2h CFM
Round wire Dryer fabric 22503 0.50 0.50 24 12 2000 1400 900 8000 500 1.06 2.0
24503 0.50 25 12 2000 1400 900 7000 438 1.10 2.0
22504 0.50 24 12 2000 1400 900 12000 750 1.26 2.1
24504 0.50 26 12 2100 1500 950 11000 680 1.3 2.1
4106 0.50 23 12.6 2200 1500 900 6800 425 1.2 1.75
4106-1 0.30 / 0.70 22.8 12.6 2200 1500 900 8000 500 1.3 1.80
26508 0.35 0.50 28 12.5 1680 1400 800 4640 290 0.82 1.1
Spiral Dry Fabric Description Paper Making Dryer Fabric :Dryer fabric is a drying part of a wet paper web. The conventional drying system can dry the wet web from 60% moisture to 2% moisture with the help of drying fabrics. drying fabrics play an important role in giving a final shape and parameters to the paper drying fabrics also known as conveyor Belts.Spiral dryer screen's application in paper machine:1) Widely used in the production of cardboard with a net, kraft paper, corrugated paper, paper of train tickets, and single whiteboard paper:
2)Instead of a dry blanket, the canvas of paper machine drying:
3)Also widely used in printing and dying, food, salt industry, pharmacy, environment protection, etc.
Type Spiral loop width
mm
Filament diameter (mm) Tensile strength
N/cm
Weight
Kg/m²
Thickness
mm
Air permeability
m³/m²h
CFM
127Pa
Spiral ring monofilament Connection Wire
5080A 5.2 0.50 0.80 1800 1.00 2.10 15000 937
Red 6280A 5 flat wires
62/30
0.80 1600 0.90 1.90 13000 820
6890A 8 0.68 0.90 2000 1.31 2.45 18000 1125
6890B 7.15 0.68 0.90 2000 1.40 2.45 16000 1000
7090B 7.5 0.7 0.90 2200 1.45 2.60 16500 1031
70100B 7.2 0.7 1.00 2200 1.50 2.54 16800 1050
Red 9090A1 8 flat wires
0.9*0.60
0.90 1800 1.60 2.80 17000 1060
9090A2 8 0.90 0.90 2300 1.80 3.03 19000 1188
