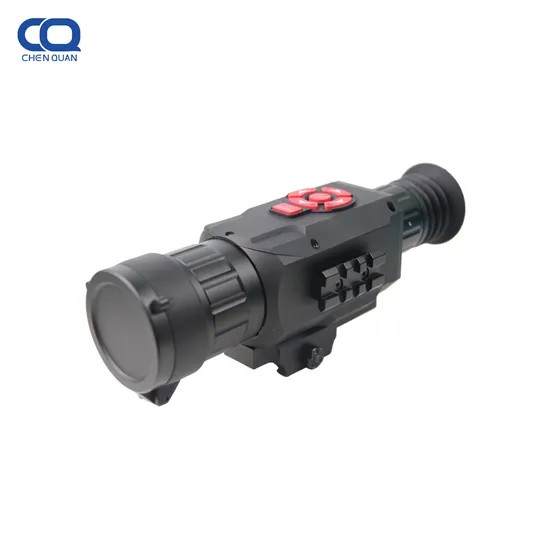

640X480 Infrared Thermal Imaging Monocular Night Vision Sight Scope 50mm
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
CQ-M5C50-640
Type
Infrared Telescope
Magnification
8X
Function
Waterproof, Fogproof, Night Vision
Usage
Bird Watching/Hunting
Structure
Reflector Telescope
Lens Type
Zoom Lens
Lens
Glass
Objective Aperture
>50mm
Focusing Type
Center Focusing
Aperture
<50mm
Pixel
640X480
Digital Zoom
1-8X
Frame Rate
50Hz
Thermal Lens
35mm or 50mm
Video Output
HDMI
Transport Package
Export Standard
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
300 Sets / Month
Product Description
| Outdoor thermal image telescope, with advanced uncooled focal plane infrared detector and high quality optical lens as the core, combined with convenient and fast operating system, small shape design, functional extension spare parts, long life, durable, suitable for all kinds of environments, creating a "clear imaging, simple operation, easy to carry" infrared thermal imaging tool for users. This product is used in wild animal observation, search and rescue, investigation, night patrol, outdoor sports, personal security, etc.This product has the function of taking photos,which can be connected to the computer via USB to browse the photos taken, convenient for multiple people to observe at the same time, and create possibilities for more application occasions. |
| Model | CQ-M5C35-384 | CQ-M5C35-640 | |
| Thermal image parameters | |||
| Detector type | Uncooled Vox or Polysilicon | ||
| Work band | 8~14μm | ||
| Detector specifications | 384×288 (17μm / 12μm) | 640×480 | |
| Image frame frequency | 25Hz (384) | 50Hz (640) | |
| Lens parameters | 35mm / 50mm F=1.0 | ||
| Zoom mode | Hand movement | ||
| Electronic enlargement | At 1~8 x continuous magnification | ||
| Double mode | There are two doubling modes of common doubling and painting doubling, | ||
| Hot tracking | Support | ||
| Photographic enhancement | Support | ||
| Pseudo-color mode | It supports 9 pseudo-color patterns such as white hot / black hot / brown / iron red / rainbow | ||
| Blinding and color | Five species and five patterns | ||
| White balance | Automatic / manual | ||
| Detection range | 1500 m (Typical climate conditions) / 3500 m (typical climate conditions) | ||
| Identify distance | 500 m (Typical climate conditions) / 1000 m (typical climate conditions) | ||
| Visual resolution | 1024x768 Binocular OLED | ||
| Display screen | 0.39 In, OLED | ||
| Contrast ratio | 1000:1 | ||
| Distance of exit pupil | 35mm | ||
| Enlargement factor | 15 | ||
| Image storage | |||
| Video photo playback | Support one-click photo, video, and can native playback and watch videos and pictures | ||
| Video format | MP4 | ||
| Image storage | JPG | ||
| Image resolution ratio | 1920×1080 | ||
| Storage capacity | Standard with 32G (optional 64G / 128G / 256G) | ||
| Interface specification | |||
| Video output | HDMI | ||
| Data export | USB 2.0 | ||
| External power supply | DC 5V Maximum current of 1A | ||
| Wireless transmission | WIFI wireless WIFI connection, can support mobile phone, tablet computer, laptop computer mobile terminal APP software real-time viewing operation | ||
| Data pick-up | |||
| Impact video | Support impact automatic video, video automatic pre-recording and save the video before and after the impact, impact video time adjustable, impact sensitivity adjustable. | ||
| One key gun | Support the one-key calibration gun function. | ||
| Azimuth sensor | Static accuracy 0.05° dynamic 0.1° | ||
| Acceleration transducer | The 2g - 60g is internally tunable | ||
| Rolling Angle Sensor | Range ± 90° static accuracy 0.05° dynamic 0.1° | ||
| Subduction Angle Sensor | Range ± 180° static accuracy 0.05° dynamic 0.1° | ||
| Altimetric sensor | Support (optional) | ||
| physical characteristics | |||
| Waterproof seal | IP66 (air-tight) | ||
| Working temperature | -25ºC~+60ºC | ||
| Storage temperature | -45ºC~+60ºC | ||
| Input voltage | DC5V | ||
| Power power consumption | The average power consumption is 3.5w | ||
| Battery capacity | 26500 rechargeable lithium battery 3.7V@4080mAH | ||
| Operate time | Continuous working hours are> 8 hours | ||
| Product size | 220×85×80(mm) | ||
| Product weight | 1100g (including battery) | ||
