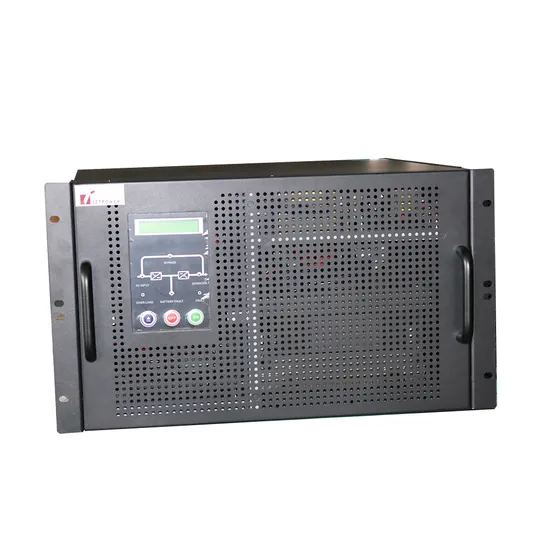

1K Va - 30K Va 220V DC Input 220V AC Output CE Certified Power Inverter
| US$350.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ND220-1030
Output Power
>1000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
DC Input
220VDC
DC Input Range
180 ~ 300VDC
AC Output
220VAC, 1phase
Frequency
50Hz, 60Hz
Output Wave Form
True Sine Wave
Output
Isolation Transformer
Alarm
Dry Contact Alarm
Power Factor
0.8
Install
19 Inches or Standalone
Warranty
1year Plus Life-Time Service
Transport Package
Plywood Case
Specification
CE, SGS, ISO
Trademark
JETPOWER
Origin
China
HS Code
85044030
Production Capacity
500PCS/Month
Product Description
Product Description 1k VA~30k VA 220V DC in 220V AC out Ce Certified Power InverterND series inverters are specially designed for railway and electric power industry. Their latest advanced technology suits all critical situations which are sensitive to power interference and need stable, reliable, clean and uninterruptible true sine wave power supply.
1. Input: 220VDC/output: 230VAC, 1phase
2. Output power: 1 to 30KVA
3. LCD display
4. Pure sine wave
ND Seires Inverter Main Features:
SPWM technology, pure sine wave output With output isolation transformer 100% Non linear load ability DC input reverse polarity protection, CPU control, advanced anti-interference technology, good electromagnetism compatibility User friendly LCD+LED display, easy to operate. Comprehensive protection: over voltage, low voltage, short circuit, over load protection and etc Optional three working modes: AC mains first, DC inverter first, pure DC inverter Install: 19 inch rack or standalone Product Parameters Specification
| Model | ND 220-1010 | ND220-1020 | ND220-1030 | ND220- 1050 | ND220- 1100 | ND220-1150 | ND220-1200 | ND220-1300 | |
| DC input | Rated DC input voltage (VDC) | 220 | |||||||
| Rated DC input current (A) | 4.5 | 9 | 13.5 | 22 | 45 | 74.2 | 99 | 149 | |
| DC input voltage range (VDC) | 180~260Vdc | ||||||||
| Bypass | Utility AC input voltage (VAC) | 220Vac±20%, 50Hz/60hz±10% | |||||||
| Utility | Rated AC input current (A) | 4.5 | 9 | 13.5 | 22 | 45 | 67.5 | 90 | 135 |
| input | Bypass transfer time (ms) | ≤4 | |||||||
| AC output | Rated capacity (KVA) | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 |
| Rated output power (KW) | 0.8 | 1.6 | 2.4 | 4 | 8 | 12 | 16 | 24 | |
| Rated output voltage and frequency | 220VAC, 50(60)HZ | ||||||||
| Rated output current (A) | 4.5 | 9 | 13.5 | 22 | 45 | 67.5 | 90 | 135 | |
| Output voltage regulation (V) | 220Vac±2% | ||||||||
| Output frequency regulation(Hz) | (50±0.25)hz | ||||||||
| THD | ≤3% | ||||||||
| Dynamic response (load 0←→100%) | 5% | ||||||||
| Power factor | 0.8 | ||||||||
| Overload | 150%,60s | ||||||||
| Crest factor | 3:01 | ||||||||
| Efficiency at rated load | 90% | ||||||||
| Environment | Insulation strength (between input & output) | 1500VAC, 1min | |||||||
| Noise (1m) | ≤50dB | ||||||||
| Temperature | -10ºC~+50ºC | ||||||||
| Humidity | 0~90%, no condensation | ||||||||
| Altitude (m) | ≤2000 | ||||||||
| Sizes | Rack type (W* D * H, mm) | 440*450*133 | 440*450*177 | 440*500*221.5 | N/A | N/A | N/A | N/A | |
| Tower type(W*D*H,mm) | 200×480×490 | 210×612×540 | 240×540×680 | 343×630×700 | |||||
| Weight (kg)(Rack type) | 33 | 41 | 50 | 48 | N/A | N/A | N/A | N/A | |
| Weight (kg)(Tower type) | 31 | 41 | 51 | 58 | 112 | 160 | 180 | 258 | |
| Protection | DC input reversely protection, DC input under voltage,over voltage, overload, short circuit, over temperature | ||||||||
