Infrared Marble Granite Cutting Bridge Machine

Product Description

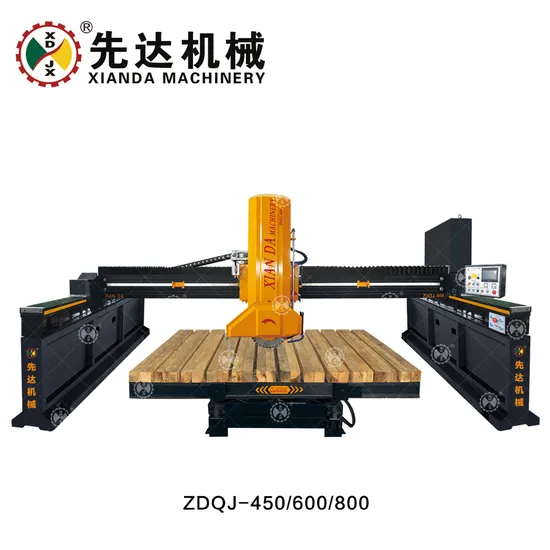

Infrared Automatic Bridge Marble & Granite Stone Cutting Machine ZDQJ-800
This machine is controlled by microcomputer, its worktable can be 909360 rotating. Special structure for the guide pulleyand side beam makes its cutting high accuracy, high stability, high efficiency. lt's suitable for processing the marble&granite with high value.
Technical Parameter

Parameter	Unit	ZDQJ-450	ZDQJ-600	ZDQJ-800
Blade Diameter	mm	φ300-φ450	φ350-φ600	φ500-φ800
Max Processing Size	mm	3200*2000*100	3200*2000*170	3200*2000*270
Trolley Size	mm	3200*2000	3200*2000	3200*2000
Worktable Tilting Angle	°	0-85°	0-85°	0-85°
Worktable Rotation Angle	°	0-90°/0-360° (optional)	0-90°/0-360° (optional)	0-90°/0-360° (optional)
Main Motor	kw	15	18.5	22
Gross Power	kw	20.5	24	27.5
Water Consumption	m³/h	3	3	3
Outline Dimension	mm	5850*4700*2700	5850*4700*3000	5850*4700*3450
Gross Weight	kg	5500	5750	6000

More Product
Factory Overviews
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and toolsin China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep"Top Technology and Superior Quality"as our standardfor all machines and got CE, ISO Quality Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evalution" , etcfor company.And we are always the sponsor for education as our CEO Mr Roy is enthusiasticabout the public welfare establishments.
Xianda always keep"Creat the highest value of your stone"as purpose,your visiting andcontacting is always welcomed.
Certifications
Exhibition
Our Team
Our Service
* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
* After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
* We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training. FAQ Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes,that we are the stone machinery factory for over 30 years.
