Manufacturer′s Direct Selling High-Precision Single-Sided Grinding and Polishing Equipment for Silicon Wafers

Product Description

Why Ponda?
Ponda has profound experience of lapping, polishing and thinning. We heretofore supplied more than 60, 000 lapping process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; the substances of metal, SiC wafer, ceramics, glass, industrial sapphire, plastics, and any other composites.

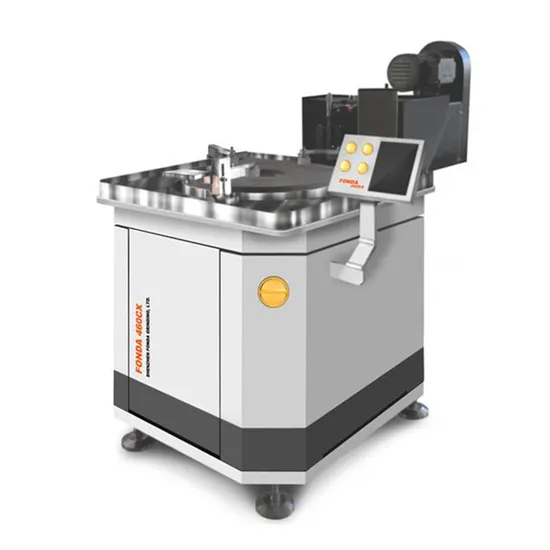

Products Show
This machine is widely used in hardware metal, mobile phone accessories, LED sapphire substrate, optical glass wafers, quartz wafers, silicon wafers, sheets, molds, light guide plates, light picker joints and other materials single-sided grinding.
How it works:
1. The grinding machine is a precision grinding and polishing equipment, the grinding and polishing materials are placed on the grinding disc, the grinding disc rotates against the clock, the correction wheel drives the workpiece to rotate, the gravity pressure is applied to the workpiece, and the workpiece and the grinding disc are relative running friction to achieve the purpose of grinding and polishing.
2. The dressing mechanism of the grinding disc adopts the reciprocating motion of the oil pressure suspended guide rail, and the diamond shaving knife trims the grinding surface of the grinding disc precisely to obtain the ideal plane effect.
Special points:
1. Usually, the way of polishing plate is to use electroplating dressing wheel to shave, which is not ideal. After shaving by dressing mechanism, the flatness can reach ±0.002mm.
2. The pressure of series grinding machine parts adopts cylinder pressure, and the pressure is adjustable;
3. Series grinding machine adopts PLC program control system, touch screen operation panel, grinding disk speed and timing can be directly input on the touch screen.
SPECIFICATION

Standard Specification
Machine Model	FD3803		FD4603		FD6103		FD9104
Plate Diameter	Φ380 mm / 15 inches		Φ460mm / 18 inches		Φ610mm / 24 inches		Φ910mm / 36 inches
Max. Workpiece Diameter (without conditioning ring)	Φ180 mm		Φ220 mm		Φ270 mm		Φ420 mm
Conditioning Ring Diameter	Φ180 mm		Φ220 mm		Φ270 mm		Φ420 mm
Number of Station	3		3		3		4
Plate Rotate Speed	0-140 rpm		0-140 rpm		0-120 rpm		0-90 rpm
Facing & Grooving Speed (Not include in Polishing)	0-120 mm/m		0-120 mm/m		0-120 mm/m		0-120 mm/m
Total Weight	450 kg		780 kg		1000 kg		1600 kg
Total Floor Space	670×940 mm		1030×730 mm		1920×840 mm		2100×1300 mm

SAMPLE DEMONSTRATION (SINGLE PLATE)
About the Company Ponda is a high-tech enterprise specializing in all kinds of high precision grinding equipment, polishing equipment and itssupporting products and consumable materials.
We have a production workshop and testing equipment, assembly workers and mechanical design engineers45 people.
Patent
Delivery & Packing
Packing Details : Packing, 1 pcs/Wooden box.
FAQs
Q1: Which machine is most applicable for my product?
A: It usually depends on 5 requirements and parameters of your product: flatness, roughness, thickness, dimension, productivity:
1. If better flatness and roughness were required, you might need both lapping and polishing machine.
2. If to thin the product in a big margin, such as 500μm, you might need a thinner machine for extra.
3. If the productivity were excessive, you might need larger machine or to expand production line.
Additionally, we can confirm the production line as we make samples for you.
Q2: Does Ponda charge for making samples?
A: No, it's free to make samples.
Q3: Is Ponda trader or manufacturer?
A: We are manufacturer, certified National High-Tech Enterprise.
Q4: How long does it take machine to deliver?
A: Approximately 15 days to deliver. If the machine are out of stock, we need 15 days more to manufacture.
Q5: Does Ponda provide oversea setup and after-sale service?
A: Yes, we provide oversea service and online tutorial.
Q6: How many type of machine does Ponda manufacture?
A: We have 21 major series of machines, 5 different types run in different principles, more than 15 types of plates, 100 types of slurries.
