High Quality Bennett Flow Meter with Manifold
Basic Info.
Model NO.
TDW-BT60
Size
DN10-50
Sensor
Clamp-on/External
Application
Transportation
Type
Volume Type Flow Meter
Measuring Media
Liquid
Measuring Principle
Electrical Principles
Measurement Object
Closed Pipeline
Certification
JIS, CE, ISO
Flow Rate
5-100L/M
Working Pressure
0.12-0.35MPa
Temperature
-45 Degree to 55 Degree
Measurement Accuracy
0.2%
Repeat Variation
Less Than 0.1%
Discharge Rate Per Revolution
0.5L
Rotary Direction of Axial
Clockwise
Working Life
More 10000000L
OEM
Yes
Net Weight
5.6kg
Transport Package
Each Flow Meter with Bubble Then in a Carton
Specification
23*20*20 cm
Trademark
TDW
Origin
Wenzhou, China
HS Code
90261000
Production Capacity
600 PCS/Month
Product Description

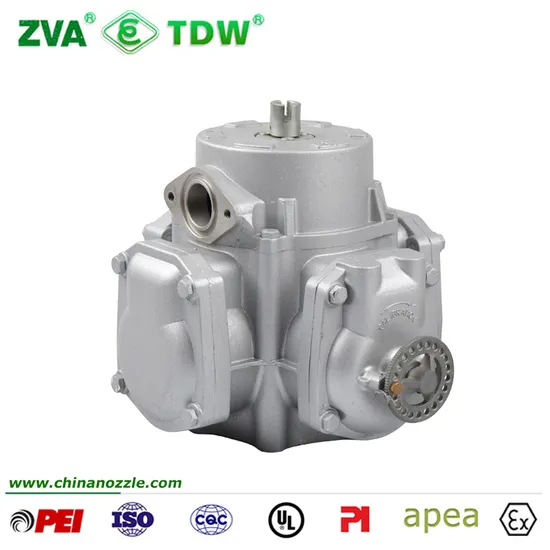

SpecificationTDW-BT60 Flow Meter
The function of flow meter is to record the volume of oil liquid flowed out. For a flow meter, the measurement accuracy is regarded as its most important feature. The metal piston & leather cup piston flow meter are the two most common types of flow meter. Whenever a certain amount of liquid passed, it will cause a angular deviation to the flow meter transmission shaft, and then the pulse generating gadget will give out a certain pulse signal to indicate the volume.
Features and Benefits:
Ø The plunger seal that is positioned with the cup toward the fluid, this provides longer life and eliminates "blow-by" for superior overall performance and accuracy
Ø Using bushing to replace bearings provide longer life time and high precision
Ø The meter uses a direct drive to the pulser which is equipped with an adjustable timeout feature for fuel theft prevention
Ø 100% Factory tested to ensure absolute "leak proof" quality.
| Technical Specifications | |
Working Pressure | 0.12-0.35Mpa |
Temperature | -45° C to 55° C |
Flow Rate | 5-100L/m |
Measurement Accuracy | ±0.2% or better |
Repeat Variation | ≤0.1% |
Discharge rate per revolution | 0.5L |
Rotary Direction of Axial | Clockwise |
Working Life | ≥10000000L |
Dimension | 23x20x20cm |
Net Weight | About 5.6KG |
You may like our other flow meter, fuel transfer pump for fuel dispenser.(Click!)
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
| Contacts | Eric Wu |
| Tel | +86 0577 85881558 |
| Fax | +86 0577 85881559 |
| Mob | +86 18657793785 or +86 13676773689 |
| China BaoTai Science And Technology Co.,Ltd |
