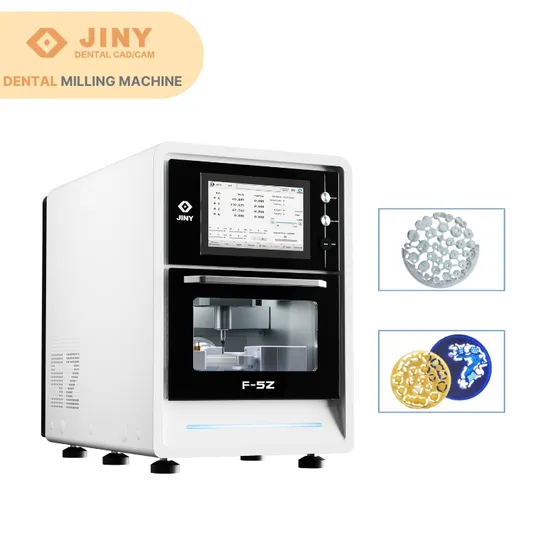

High Precision Dental Zirconia Milling Machine with 5 Axis for Dental Laboratory Factory Price
Basic Info.
Model NO.
F5Z
Application
Zirconia
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Milling Mode
Dry Cutting
Max Power
0.5kw
Cooling Type
Air Cooling
Max Spindle
Speed: 3000-60000rpm
Dimension
470*618*710 (mm)
Weight
115kg
Tool Capacity
4 PCS Automatic Tool Change
Milling Range
a: 360; 90; B: 30
Space Style
Desktop
Transport Package
Wooden
Specification
600*700*800mm
Trademark
JINY
Origin
China
HS Code
8465990000
Production Capacity
2000units/Year
Packaging & Delivery
Package Size
60.00cm * 70.00cm * 80.00cm
Package Gross Weight
150.000kg
Product Description
| Product Name | 5 Axis Zirconia Milling Machine. |
| Milling Mode | Dry cutting |
| Max Power | 0.5KW |
| Main axis speed | 60000 rpm |
| Cooling Type | Air Cooling |
| Rotating axis working range | Milling Range: A: 360° ±90° B: ±30° |
| Tool Capacity | 4 pcs automatic tool change |
| Input voltage | AC 100~235V,50~60Hz |
| Milling Range | A: 360° ±90° B: ±30° |
| Production | 10-20min/Piece |
| Space Style | Desktop |
| Processing material | Zirconia, PMMA, resin, wax, PEEK |
| Product type | Crowns, inlays, all-ceramic crowns, bridges, oxide abutments, all-ceramic crowns |
| Processing methods | Dry milling |
| Material size | 98mm*10mm to 98mm*25mm |
| Machine dimensions | 470*618*710 (mm) |
| Weight | 115kg |
Guided CAD/CAM production and maintenanceCAD/CAM production and maintenance have never been easier. The Ceramill Motion 3 combines maximum user-friendliness and process reliability due to HMI and RFID technology. With an intuitive interface and sophisticated tracking technology, the machine guides you intelligently through the processes. This allows you focus on essential things and saves time, money and nerves.
Analytics in Motion
Owing to the integrated analysis functions via AG.Live, you are able to continuously optimize capacity and resource management and fully gear the use of the Ceramill Motion 3 to efficiency, quality and customer satisfaction.
Excellence in quality and diversity
Never has a single machine offered so much motion! The Ceramill Motion 3 is ready for any indication and enables fully automated dental arch restorations of the highest quality due to innovative carving and sculpturing technology (C-Clamp) in the accustomed Motion quality.
