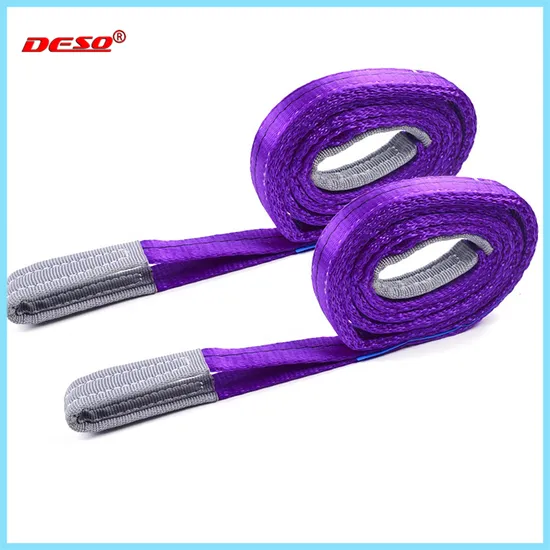

Heavy Duty Polyester Flat Webbing Sling 1 Ton Lifting Belt

Product Description

1 Ton Flat woven webbing sling EN1492-1 Material: 100% high tensile polyester (PES) Single ply&double ply Available Different capacity with different color and width,easy to distinguish According to Standard DIN-EN1492-1 Wider and more smooth load surface attached to the lifted object,better protection against the abrasion and damage. Safety factor :4:1,5:1, 6:1,7:1,8:1 available. Working temperature: -40ºC to 100ºC Manufactured according to EC directive 98/37/EC. Product Show
Data Sheet

WEBBING WIDTH (MM)	WLL	WLL WITH ONE WEBBING SLING					WLL WITH TWO WEBBING SLING
		STRAIGHT LIFT	CHOKED LIFT	LIFT IN DIFFERENT ANGLE			STRAIGHT LIFT	CHOKED LIFT	STRAIGHT LIFT	CHOKED LIFT
				0°-7°	7°-45°	45°-60°	≤45°	≤45°	45°-60°	45°-60°
		1.0	0.8	2.0	1.4	1.0	1.4	1.12	1.0	0.8
25/30	1T	1000	800	2000	1400	1000	1400	1120	1000	800

More Capacity Available
Sewing DetailTag&Certificate Design(Each With Unique ID No.Shown On Both Tag And Certificate)Factory Production
Data Sheet

WEBBING WIDTH (MM)	WLL	WLL WITH ONE WEBBING SLING					WLL WITH TWO WEBBING SLING
		STRAIGHT LIFT	CHOKED LIFT	LIFT IN DIFFERENT ANGLE			STRAIGHT LIFT	CHOKED LIFT	STRAIGHT LIFT	CHOKED LIFT
				0°-7°	7°-45°	45°-60°	≤45°	≤45°	45°-60°	45°-60°
		1.0	0.8	2.0	1.4	1.0	1.4	1.12	1.0	0.8
25/30	1T	1000	800	2000	1400	1000	1400	1120	1000	800
50/60	2T	2000	1600	4000	2800	2000	2800	2240	2000	1600
75/90	3T	3000	2400	6000	4200	3000	4200	3360	3000	2400
100/120	4T	4000	3200	8000	5600	4000	5600	4480	4000	3200
125/140	5T	5000	4000	10000	7000	5000	7000	5600	5000	4000
150	6T	6000	4800	12000	8400	6000	8400	6720	6000	4800
200	8T	8000	6400	16000	11200	8000	11200	8960	8000	6400
250	10T	10000	8000	20000	14000	10000	14000	11200	10000	8000
300	12T	12000	9600	24000	16800	12000	16800	13440	12000	9600

Application:
Packing as below:Shrink film-Carton-Pallet-Container Loading
ISO 9001&EN1492-1 Standard
