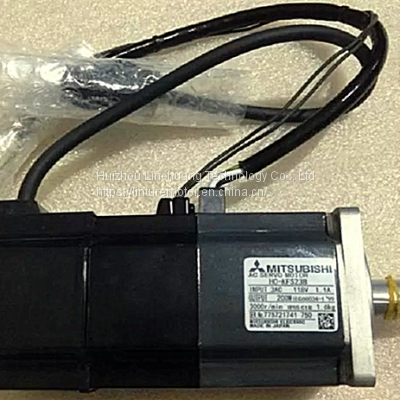

Mitsubishi AC Industrial Servo Motor HC-MFS23 / HC-MFS23K / HC-MFS23B / HC-MFS23BK
Motor Dimensions
● HC-KFS053 (B), HC-KFS13 (B)
● HC-MFS053 (B), HC-MFS13 (B)

Model	Variable dimensions
	L	KL
HC-KFS053(B) HC-MFS053(B)	81.5 (3.21)	29.5 (1.16)
HC-KFS13(B) HC-MFS13(B)	96.5 (3.80)	44.5 (1.75)

HC-MFS series servo motor torque characteristics
For servo motor 200V
Hc-mfs23 hc-mfs23k hc-mfs23b hc-mfs23bk Mitsubishi J2S series 3K rotation ultra low inertia / small capacity servo motor 200W type. Hc-mfs23 Mitsubishi J2S series 3K rotation ultra low inertia / small capacity servo motor hc-mfs23b with electromagnetic brake hc-mfs23k with keyway
Hc-mfs23 Parameter Description: 3000r / min, 200W type, ac200v
Hc-mfs23 is a Mitsubishi mr-j2s series 3000r / min series ultra-low inertia and small capacity servo motor. Hc-mfs23b is a type with electromagnetic brake. The difference between hc-mfs23k and hc-mfs23 is that the former is a keyway, and the others are the same!
Mitsubishi servo motor hc-mfs23 product specification:
[corresponding servo amplifier model] mr-j2s-20a, mr-j2s-20a1, mr-j2s-20b, mr-j2s-20b1
MR-J2S-20CL,MR-J2S-20CL1,MR-J2S-20CL,MR-J2S-20CL1
[power supply equipment power (kVA)] 0.5
[continuous operation characteristics]
. rated output power (W): 200
. rated output torque (n · m): 0.64
[maximum output torque (n · m)] 1.9
[rated speed (R / min)] 3000
[maximum speed (R / min)] 4500
[allowable instantaneous speed (R / min)] 5175
[power change rate at continuous rated torque output (kW / s)] 46.02
[rated current (a)] 1.5
[maximum current (a)] 5.0
[motor moment of inertia J (* 10 to the minus fourth power kg · m square)]
. HC-MFS23:0.088
. HC-MFS23B:0.136
[recommended ratio of load / motor moment of inertia (Note 2)] max. 30 times
[speed / position detector] 17 bit encoder (encoder / servo motor rotation: 131072p / Rev)
[structure] totally enclosed self cooling (protection grade: IP55)
[weight]
. HC-MFS23:0.99kg
. HC-MFS23B:1.6kg
