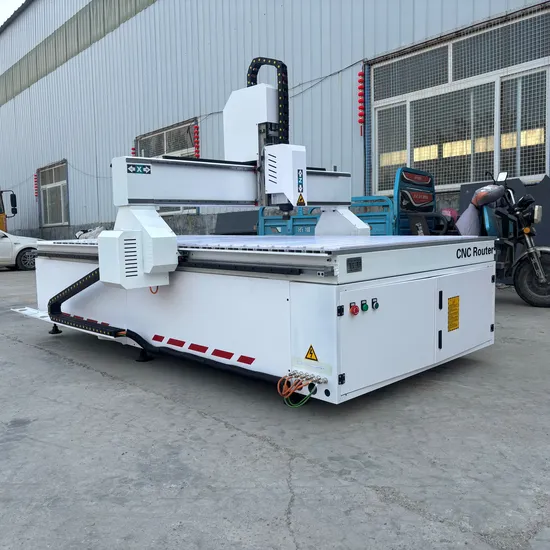

Precision Robust 1325 CNC Wood Router with Exceptional Cutting Machine

Product Description

Product Parameters

Woking area	600*900*200mm or 600*900*500mm
Table style	Aluminum T-slot table with PVC
Table surface	Welded steel tube,cast iron vertical shafts and steel gantry
Spindle	3.0KW water cooling spindle
Spindle rotating speed	0-24000rpm
Collect size	ER20
Guide rail	Taiwan Hiwin linear square guide rail
Driving method	X,Y axis by helicia gear rack,Z axis by TBI ball screw
Motors and drivers	Stepper motor 450B and leadshine drivers MA860H
Control system	NCstudio control system
Invert	Fuling invert
Max.working speed	12m/min
Instruction formate	G code*.u00*.mmg*.plt
Woking voltage	AC220V/AC380V,single phase/3 phsae,50-60Hz
Standard software	Artcam 2010
Compatible software	Type3
Control Cabinet	Independent
Other	Tool sensor;Oiling system;Water pump;Tool Box,English manuals etc.
Optional parts	1)4.5kw water cooling spindle; 2)Rotary axis(80mm//100mm/150mm) diameter; 3)Mach3/DSP control system; 4)Dust collector; 5)Vacuum table with 5.5kw vacuum pump.

This state-of-the-art machine can be meticulously customized to align perfectly with your specific requirements, ensuring optimal functionality and peak performance.
Product Description
The Wayne CNC router machine epitomizes intelligent cutting and milling technology. Meticulously engineered to cater to diverse and intricate processing needs, it boasts unparalleled versatility in routing, drilling, cutting, sawing, slotting, and more. The Wayne CNC Router machine is equipped with a carousel tool magazine, which can seamlessly integrate beside the spindle or along the fuselage. This advanced feature allows for automatic tool changes, enabling the machine to execute multiple complex processes in a single operation. From cutting and engraving to drilling, grooving, and pocketing, it adeptly handles wood, MDF, acrylic, PVC, plastic, foam, and many other materials.
The Wayne CNC router machine is the ultimate choice for enterprises with significant production demands. It revolutionizes the traditional manual tool change production method by featuring an independent tool magazine with various tool bits. Controlled completely by computer programs, the machine can automatically switch tools without interrupting the workflow, ensuring seamless and efficient processing.
1. Wood Processing: Expertly processes a variety of furniture including doors, windows, cabinets, screens, and more. 2. Advertisement: Perfect for engraving and cutting diverse labels and number plates with precision.
3. Art Crafts: Skillfully engraves characters in any language and intricate graphics on gifts and souvenirs.
Main Feature
1. Z axis feeding height of 200mm, ensuring optimal performance.
2. Robust square tube welded steel frame structure with 8mm thickness for enhanced stability.
3. Choice of Aluminum T-slot table or Vacuum table, accompanied by a powerful 5.5kw Vacuum pump.
4. X axis rack and pinion drive, Y axis dual rack and pinion drive, and Z axis 2510 Ball screw configuration for precise movement.
5. High-quality X, Y, Z axis Taiwan square rails from PMI for smooth and accurate operations.
6. Equipped with 450B stepper motor and MA860H Leadshine driver, or optional servo motor and driver for superior control.
7. Features a 3.0KW water cooling spindle and a 3.7kw Fuling inverter, with other spindle options available for customization.
8. Integrated Nc-Studio-5.4.49 control system, with optional DSP or Mach 3 for tailored control solutions.
Options
1) 4.5kw water cooling spindle;
2) Rotary axis (80mm/100mm/150mm diameter);
3) Mach3/DSP control system;
4) Dust collector;
5) Vacuum table with 5.5kw vacuum pump
Detailed Photos
Packaging & Shipping
Company Profile
Liaocheng Wayne New Materials Co., Ltd. stands at the forefront of CNC Router and Laser Engraving & Cutting technology. Nestled in the innovative hub of Liaocheng city, Shandong, our expansive product line includes Large-scale ATC Woodworking Router Machines, 5-axis CNC Router Machines, CNC Advertising Router Machines, CNC Marble Engraving Machines, CNC Plasma Cutting Machines, CNC Metal Mold Machines, CNC Lathe Machines, Swiss Type Lathe Machines, Fiber Laser Cutting Machines, CO2 Laser Cutting & Engraving Machines, Laser Marking Machines, and Laser Welding Machines, among others. Leveraging cutting-edge technology and superior quality, we are committed to establishing the global brand 'Wayne.' With our products reaching over 100 countries, including the United States, Germany, Indonesia, Canada, Australia, Russia, and across Southeast Asia, we are truly an international leader in our field.
Our core mission is to provide unparalleled service to our customers. Whether it's stock or custom configurations, we excel in delivering tailored solutions. Each component of our machines is meticulously sourced from world-renowned suppliers and pioneers in machine control, ensuring exceptional performance and reliability. Our machines are integral to a variety of industries and artistic endeavors, including woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, and mold making. Supported by a dedicated and highly skilled after-sales service department, a proficient sales team, and rigorous quality assurance protocols, you can purchase with absolute confidence. We extend a warm invitation to customers and potential business partners worldwide to join us in cooperative ventures for mutual success. Offering the best service, quality, and price, Wayne is your ultimate choice. We eagerly look forward to collaborating with you to generate greater value. Reach out to us with your requirements, and let's engage in a fruitful conversation. We await your contact.
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer with Laser machine and CNC lathe machine
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB Qingdao.
5. What's your payment term?
A: T/T OR L/C at sight.
