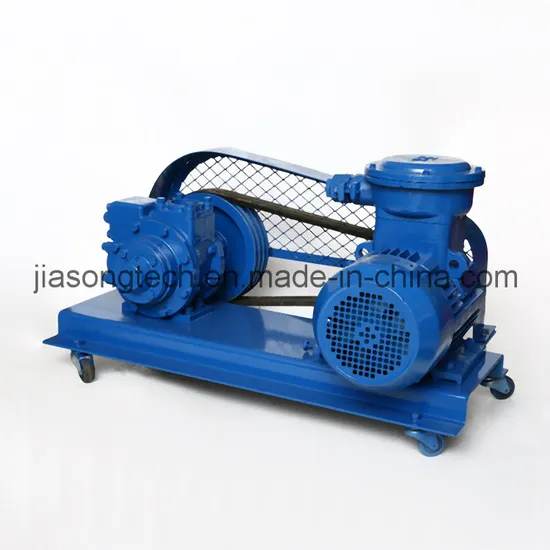

Movable V-Belt Drive Fuel Rotary Vane Pump

Product Description

Main Features
YB series self-priming rotary vane pump is with by-pass valve built-in. The pump uses a rotor with sliding vanes to drive the liquid transfer. The material of construction is nodular cast iron with self-lubricating vanes. Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps. The pump has its obvious advantage in the transmission of high flow at low revolution.
Application
Oil tank truck
Fleet refueling.
Lube oil
Aviation refuelers
Transmission of petrochemicals, gasoline, diesel, biofuel, solvent, etc.
Installation
With cardan shaft or hydraulic motor, the pump can be installed on oil tank trucks. And also it can be installed on metal baseplates with motor or diesel engine, using for high flow fuel dispensers and floating fuel equipments which are compose of pumps and flowmeters. Equipped with Teflon seals, the pump can also transfer a wide variety of solvent in the petrochemical industry.

Model	Size/Flow Rate/Speed	650 RPM		600RPM		550 RPM		500 RPM		450 RPM		400 RPM
		G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min	G/min	L/min
YB-50	50mm/2''	80	300	72	270	64	240	56	210	48	180	40	150
YB-65	65mm/2.5''	132	500	123	465	114	430	103	390	93	350	82	310
YB-80	80mm/3''	265	1000	243	920	222	840	200	760	180	680	160	600
YB-100	100mm/4''							505	1900			405	1530

Performance Data

Model		YB-50	YB-65	YB-80	YB-100
Rated Speed		640RPM	640RPM	640RPM	640RPM
Power	HP	3.0	5.0	10	25
	KW	2.2	4	7.5	18.5
