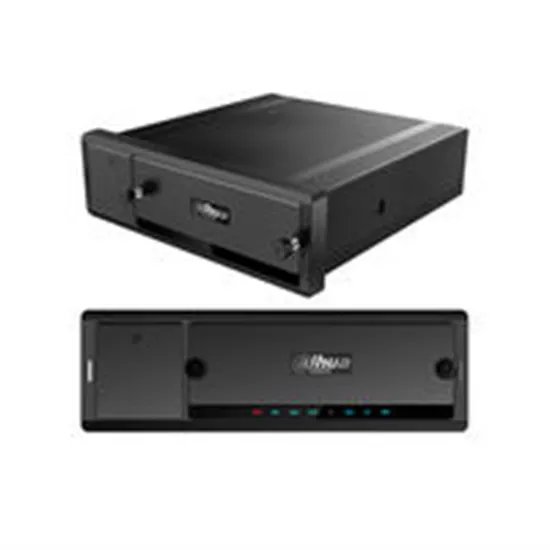

Dahua Dhi-Mnvr8208-Gfwi 8 Channel Ai DVR with Poe

Product Description

MNVR8208-GFWI 8 Channels POE H.265 2 HDDs Mobile Video Recorder
> Support 8-ch POE IP cameras and 2-ch HDCVI cameras input
> Supports H.264/H.265 video compression
> Supports DSM/ADAS/FR/LPR
> VGA, HDMI simultaneous video output
> Supports two pluggable 2.5'' HDDs/SSDs, adopting anti-vibration design
> Built-in GPS, 4G and Wi-Fi modules.
> Aviation connectors optional (RJ45 by default)
> Support 6-36V DC wide-range power input
> Multiple network monitoring: Web viewer, Mobile Center & DMSS Specifications

System

Main Processor

High-performance industrial embedded micro-controller

Operation System

Embedded LINUX

Audio

Audio Compression

G711A, G711U, G726, PCM

Audio Output

2 channels

Audio Sampling

8KHz, 16Bit


Image Compression

H.265+/H.265/H.264+/H.264

Resolution

1080p (1920×1080) for all channels

Video

Video Input

8 channels of POE IPC; 2 channels of HDCVI (DSM/ADAS)

Video Output

1×VGA (Aviation connector) 1×HDMI 1×CVBS (transfer via EXTEND port)

Video Frame Rate

PAL: 25fps NTSC: 30fps

Multi-screen Display

1/4/8/9/16 split screens

Tour

Timed auto control, dynamic surveillance and alarm.

OSD

Channel, time, license plate, GPS

Color

Set tone, brightness, contrast, saturation and gains for each channel's video image.

Alarm

Alarm Input

9 channels, Alarm1-8 are local alarm input, Alarm 9 is pulse input.

Alarm Output

2 channels,1 relay out, 1 controllable 12V 0.75A out

Linkage

Snapshot, tour, recording, buzzing and email.

Hard Disk

Storage

1×SD card, up to 512GB 2×HDD/SSD, up to 2TB for each

Work Management

Non-working hard disks fall asleep, to help to reduce power consumption and dissipate heat.

Function

Recording Priority

Manual recording > alarm recording > motion detection recording > Timed recording

Recording Resolution

1080P for all channels

Recording Lasting Time

60 min (default: 60 min), pre-record: 1-30 sec, post-record: 10-300 sec

HDD full

Stop Record;Overwrite

Recording Searching

Time /Date, Alarm, MD and Exact Search (accurate to second)

Recording Playback Speed

Several playback rates of slow playback or fast playback; playing video backwards; manual single frame playback

Recording Playback Switching

When playing a recording, with one click, switch to recording in another channel whose play time will the same one.

Playback

1 channel

Digital Zoom

When playing recording in a full screen, select a region on the screen to enlarge it.

Motion Detection

396 motion detection regions for each channel; different sensitivity levels selectable for a region.

Video Loss

Yes

Sensor

Built-in gyro

Storage Capacity Extension

Extends storage capacity by USB flash drive or mobile hard disk.

User Management

Management of users of different roles

User Password Security

Yes

Firmware Upgrade

By web, U-disk, ConfigTool or Mobile Center

Port

USB Port

Front panel: 2 × USB 3.0 Rear panel: 1 × USB 2.0 from EXTEND port

Network Port

1, RJ45 10M/100M self-adaptive Ethernet port

SATA

2

RS-485

1

RS-232

2

Color

Set tone, brightness, contrast, saturation and gains for each channel's video image.

CAN

1

VGA

1

HDMI

1

Wi-Fi

Built-in Wi-Fi module

4G

Built-in 4G module

GPS

GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System)

AI

Driver Status Monitoring (DSM)

Support drowsy driving, distracted driving, calling, no driver, wearing IR blocking sunglasses, smoking, lens tampering, and unbelted alarms.

Advanced Driving Assistance System (ADAS)

Support Lane Departure Warning, Forward Collision Warning and Headway Monitoring Warning.

License Plate Recognition (LPR)

Support recognition of license plate, vehicle color and vehicle brand.

Face Recognition (FR)

Support max. 30,000 face images, 20 face databases.

Others

Power Supply

6-36V DC

Power Consumption

≤12W (without any peripheral)

Operating Temperature

-30°C to +70°C

Operating Humidity

10%-90%

Dimension

180 mm × 190 mm × 50 mm (7.0" × 8.7" × 2.0")

Weight

Net Weight: 2.1kg Gross Weight: 3.2kg

Installation

Embedded or bracket installation

Certifications

CE/FCC/E-mark/EN50155
