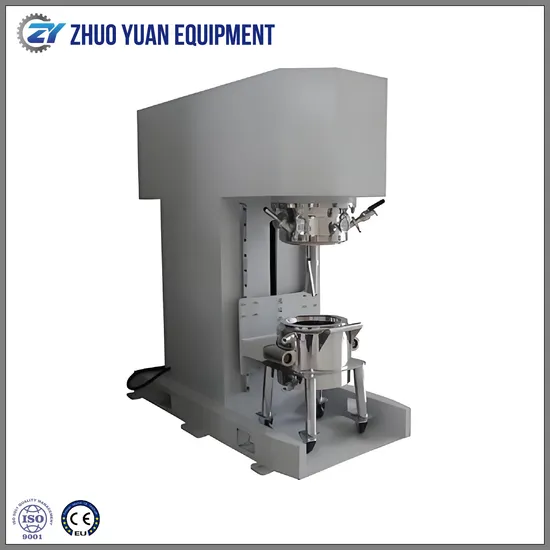

Stainless Steel Multifunctional High Viscosity Rubber Composite Material Dual Power Planetary Vacuum Mixer

Product Description

Product Description

Model Capacity (L) Power (kw) Speed (rpm) Dispersion Dia(mm) Lifting stroke(mm) Hydraulic power(kw) FSJ-1.5 ≤50 1.5 0-1450 150 600 0.55 FSJ-4 ≤200 4 0-1450 200 800 0.55 FSJ-7.5 ≤400 7.5 0-1450 230 900 0.55 FSJ-11 ≤500 11 0-1450 250 900 0.55 FSJ-15 ≤700 15 0-1450 280 900 0.55 FSJ-18.5 ≤800 18.5 0-1450 300 1100 0.75 FSJ-22 ≤1000 22 0-1450 350 1100 0.75 FSJ-30 ≤1500 30 0-1450 400 1100 0.75 FSJ-37 ≤2000 37 0-1450 400 1600 1.1 FSJ-45 ≤2500 45 0-1450 450 1600 1.1 FSJ-55 ≤3000 55 0-1450 500 1600 1.1 FSJ-75 ≤4000 75 0-950 550 1800 2.2 FSJ-90 ≤6000 90 0-950 600 1800 2.2 FSJ-110 ≤8000 110 0-950 700 2100 3 FSJ-132 ≤10000 132 0-950 800 2300 3

Very little air is absorbed during stirring and dispersing, and the mixing and blending effects are excellent. Using medium or high speed stirring and dispersion can make the materials dissolve quickly and the particles become smaller. Various specifications such as electromagnetic speed regulation, frequency conversion speed regulation and three-speed, stable and powerful operation, suitable for various viscosities. Hydraulic or pneumatic lifting, no leakage, free lifting and rotation, adaptable to various positions. Ordinary and explosion-proof configurations, safe and reliable, simple operation and maintenance, suitable for various materials. High-speed dispersion is aimed at dissolving, dispersing and evenly mixing products of different viscosities. Through the high-speed operation of the dispersion disk, strong shear impact and friction are generated between the material and the dispersion disk, so as to achieve the functions of rapid dispersion, dissolution, uniform mixing and emulsification.

Mixer Type	Planetary Mixer
Function	Dispersing/mixing/agitator
Material	SS304
Motor	ABB/SIEMENS/TECO/SEW
Key Selling Points	High Torque, High Strength
Voltage	220-600V
Structure	Main host up and tank
Lifting structure	Hydraulic up and down

Detailed Photos Packaging & Shipping Power Speed Disperser big volume, need ship them by sea to your local seaport.
Normal shipping time at least need one month or even two month.
If small volume then can choose ship by air.
Company Profile
Foshan Zhuoyuan Intelligent Equipment Co., Ltd. is a professional manufacturer of mechatronic equipment for fine chemicals and related fields. The company takes science and technology as the guide, is committed to the application of advanced technologies at home and abroad, and focuses on serving small and medium-sized chemical companies.
The equipment we can provide includes: complete sets of resin equipment, dispersion equipment, mixing equipment, powder mixing equipment, cracking kettle silicone oil kettle complete set of production equipment, glass glue MS glue complete set of production equipment, double planetary power mixer series, etc., and can complete the overall design, integration, and installation of production lines in related fields with our products as the core, and can provide service technology and equipment support in many fields such as coatings, inks, printing and dyeing auxiliaries, adhesives, liquid detergents, cosmetics, building materials, and food.
The company's main technologies and products:
1. Design, manufacture and installation of chemical equipment.
2. Complete equipment for unsaturated resins, emulsions, water-based PU, seam beautifiers, adhesives, paints, coatings and hot melt adhesives
3. Complete equipment for glass glue, MS glue, silicone, structural glue, electronic potting glue, thermal conductive glue and polyurethane glue
4. Multifunctional reactor, powerful disperser, planetary mixer, double planetary power mixer, horizontal kneader, vertical kneader, vacuum disperser, concentric twin-shaft mixer
5. Horizontal twin-screw mixer, twin-screw cone mixer, vertical ribbon mixer, plow blade mixer, twin-shaft zero-gravity mixer, complete equipment for powder mixing.
Our Advantages
1. We promise that no matter when and where your mechanical equipment has problems, our professional after-sales team will respond quickly. With rich experience and superb technology, they will arrive at the site as quickly as possible, accurately diagnose and solve the faults, and minimize the impact on your production and operation.
2. Regular maintenance services are like a source of vitality for mechanical equipment. We will take the initiative to arrange for you and take good care of your equipment to keep it in the best performance state at all times, extend its service life, and create more value for you.
We also have a 24-hour after-sales service hotline to listen to your needs and feedback at any time. We regard every question and every suggestion of yours as a driving force for improvement and improvement.
FAQ
Q: Do the machines need customized ?
A: Yes, the machines are different with other products, most ofthe large-scale machines aredesigned according to our customers'requirements, different customers have different production requirements, so the technical parameter is different for most machines.
Q: Why does it take at least 30 days to finish the machine?
A: Once receipt the deposit from you, we will design the drawings and make out the list of the materials and accessories for the production. Once the drawings are finished, our workers will start the production, from welding, polishing, assembling,debugging, detection and so on. After finish, they need time to check the machines, if found any possible defect parts, they will return to the production until every part is 100% approved.
Q:Can you send the detailed drawings of the machine to us before we place order?
A: We can send you a draft drawing of the machines, and after you place order and pay the deposit, our engineer will design the specific technical parameters fo you and send you the detailed drawings.Once you confirm without questions, we will put it into production.
Q: How is the order process ?
A: Send us inquiry for your required,we will make quotation depend on your requirements, confirmed offer make deposit payment pre-production, balance after finished.
