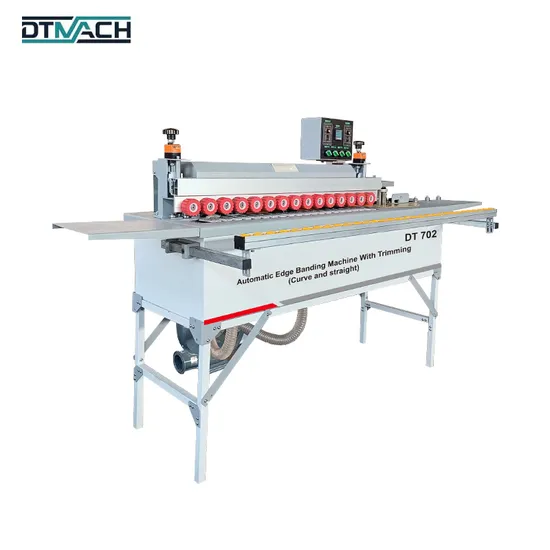

Automatic Edgebanding Machine Curve Trimmer Manual Edge Banding Machine Small for Wood Laminate

Product Description

Fully automatic curve and straight edge banding and trimming machine features: 1. Use the profiling glue pot,make the glue more uniform.
2. Use the integrated conveying aluminum beam,the digital display, ad-iusts the lifting of the pressure beam and easy to edge banding the large plate sand narrow plates.
3. Conveying motor power is increase, operation is stable
4. Profiling trimming flush motor,linear guiderail movement,simple and convenient adjustment,trimming comes with arc
5. Profiling trimming end cutting motor, better debris cleaning effect
6. The length of the machine is lengthened,the number of pressure wheels is increased,and the delivery of plates is more stable.
Product Parameters

Strip thickness	0.8-2mm
Conveying speed	6-8m/min
Panel thickness	15-30mm
Narrowest panel width	45mm
Minimum panel length	20mm
Glue box motor	25W
Conveyor motor	60W/speed ratio 50
Total power	2.2KW
Trimming motor	500W x2
Glue box heater	800W
Upper and lower polishing motor	180W x2
Dimensions	lnstallation size: 1966x520x1167mm
Weight	110kg

Detailed Photos
Application

Product Display
Company Profile
Shandong Dongteng Machinery Co., Ltd. is committed to developing ,manufacturing and servicing of the woodworking machinery industry, improving production efficiency for the majority of manufacturers, and contributing to the development of the industry. The company's factory covers an area of more than 35,000 square meter, with more than 200 employees, more than 20 engineers of various types, more than 100 sales, an exhibition hall area of more than 1,500 square meter, and a warehouse area of more 4,000 square meter, providing customers with the best quality service as all times.
* In-depthcooperation with 8000companies,
* 200 patents and certificates,
* Factory more than 35000 square meters,
* After sale Service experienced and knowledgeable team of technical support.
Certifications

Packaging & Shipping

FAQ
Q1: I want a edge banding machine , can you give me some suggestions ?
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
