3 Axis CNC Double Head Cutting off Saw for Aluminum Profile
| US$8,500.00-19,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LJB2B-CNC-550*6000
Application
Aluminum/UPVC/Curtain Wall Material
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, Integrated Casting
Condition
New
Power Supply
380V/50Hz
Saw Head Motor
2*3.0km 3000r/Min
Working Pressure
0.6~0.8MPa
Air Supply
60L/Min
Cutting Length
0-6000mm
Cutting Width
Max.210mm
Cutting Angle
22.5 Degree to 157.5 Degree
Feeding Speed
0~4m/Min
Saw Blade Specification
600mmx4.4X30 Z=120
Overall Dimension
7800X1500X1800mm
Weight
2000kg
Transport Package
Wooden Box
Specification
600*6000
Trademark
Seth
Origin
Jinan
HS Code
8461500090
Production Capacity
500 Units/Month
Packaging & Delivery
Package Size
780.00cm * 150.00cm * 180.00cm
Package Gross Weight
2200.000kg
Product Description
| Power supply | 380v 50hz |
| Saw head motor | 2× 3KW/3000r/min |
| SERCO MOTOR | 2X1KW |
| CUTTING ANGLE | 22.5-157.5° any angle cutting |
| Working pressure | 0.6~ 0.8MPa |
| C Air consumption | 60L/min |
| Cutting length | Max6000mm |
| Cutting width | Max 210mm |
| Max. Cutting slope | 45°210×170mm 90°210×345mm |
| Max. square tube cutting | 210×200mm |
| Cutting angle | any angle |
| Feeding speed | continuously viable 0-4m/min |
| Saw blade specification | ø600 × ø30 × 4.4× Z144 |
| dimension | 7800× 1500× 2040 mm |
| weight | 2000kgs |
| Accuracy of repeated fixed length | ≤ 0.1mm |
| Allowance of section cutting angle | ± 3' |
| Flatness of cutting profile | ≤ 0.02m |
| Roughness of cutting profile | Ra12.5μm |
Features of equipment:
Mainly used for industrial aluminum profiles,aluminum doors and Windows, curtain wall material cutting, can also be used Cutting of PVC and wood profiles.
The imported high-speed spindle direct connected motor is mounted with diamond saw blade. The saw blade feed is driven by gas-liquid damping cylinder, and the cutting is stable.
High precision imported cutting saw blade, cutting section is smooth, imported servo motor drive reducer,
The cutting Angle can be adjusted between 22.5° and 157.5°.
The import control system can realize advanced functions such as profile optimization and cutting, and can be entered to cut at one time
Cut the size of several profiles, to achieve continuous cutting of different lengths, to achieve direct processing size
In, change the cutting length without returning to the reference point.
There is a saw blade sealing device under the workbench, the chip removal effect is good, with the following opening and closing saw cover, safe
All reliable, good working environment.
Two cylinders in each machine head clamp the profile, cutting safely and reliably.

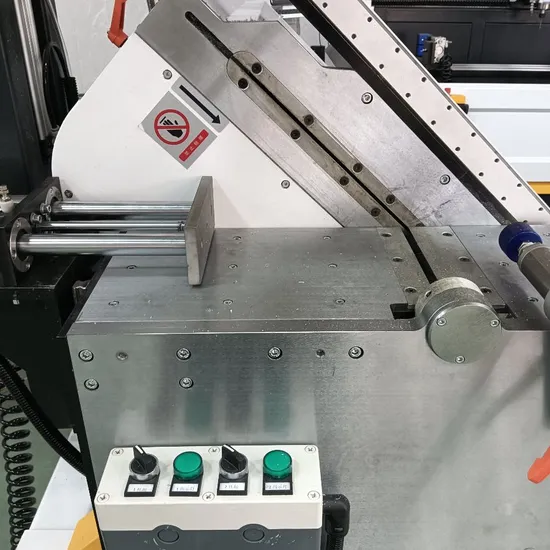

Detailed Photos
