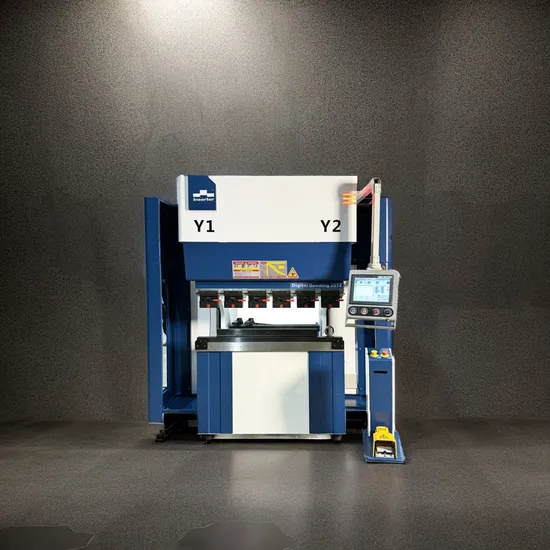

Stable Opening Height 430mm Throat Depth 400mm Servo Electric CNC Metal Bending Machine

Product Description

Product Description
The full servo bending machine adopts a high-end CNC system, the main board adopts industrial-grade chips, 15-inch touch display, high-speed and high-precision control, energy-saving and environmentally friendly, especially power-saving, no need to use and replace hydraulic oil, spindle power box, sealing protection design , super long life, the best choice for buyers.
TECHNICAL INDICATORS 1.Repeat positioning accuracy reaches ±5μm.
2.Intelligent tool load monitoring.
3.Automatic bending pressure calculation.
4.Direct calculation of back gauge position.
5.Intelligent angle compensation function
(requires only one trial bend for automatic correction of angle deviation.)
6.Continuous arc bending function.
7.Die parameter library.
8.Password protection function.
Product Features

Size	EP-3512	EP-6025
Bending pressure	35 TON	60 TON
Bending length	1200 MM	2500 MM
Throat depth	400 MM	410 MM
Opening height	430 MM	470 MM
Y axis travel	180 MM/S	220 MM/S
X-axis travel	400 MM/S	500 MM/S
R axis travel	140 MM/S	200 MM/S
Z1/Z2 stroke	700 MM/S	400 MM/S
Axis	6	6
Weight	2580 KG	5300 KG

FAQ 1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),North America(10.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),Mid East(2.00%). There are total about 20-50 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Fastener Insertion Machine,Self clinching Press,Riveting Machine,Spot Welder,Clinching Fasteners 4. why should you buy from us not from other suppliers? RSM Machinery CO.,ltd includes fastener insertion machine, self clinching machine, hydraulic steel/ironworker, turret grinding machine ,self clinching system , production line as well as other different kinds of machine tooling and accessories. 5. what services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,L/C,Cash; Language Spoken:English,Chinese
