SPD Surge Protective Breaker Device
| US$0.98 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SUP SPD
Speed
Fuse
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
SPD
Poles Number
4
Type
SPD
Function
Circuit-Breaker Failure Protection, Overcurrent Protection
Certification
ISO9001-2000, CE, CB, CCC
Transport Package
Carton
Trademark
ELECAL
Origin
Wenzhou
Product Description

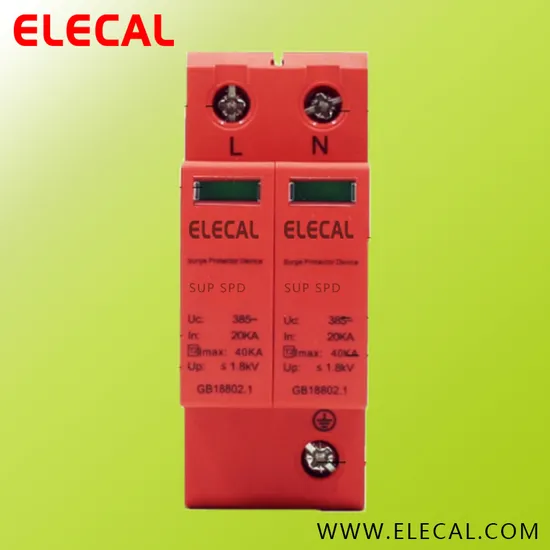

Usage and application scopeSUP1 type surge protective device (short name "SPD") is suitable for AC 50/60 Hz,380V and the following electric power systems,such as TT, IT, TN-S, TN-C, TN-C-S. It protects the electric network shocked by the thunder or over voltage .
Working condition:
1.Height: not more than 2000m
2. Operating temperature : normal -5~+40C Enlarge range: -40~+80C
3. Relative humidity: on condition that room temperature 30%~90%
4. Installed at no notability shocked and virated place
5. Don't be contained in explosion medium,the medium such as air and dust (including conduction dust ) shouldn't come to the degree that can corrode metal or damage insulation.
| Model and meaning | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tripping device There's tripping device designed on the modular of the protector. When the protector is over heat or shocked, the tripping device can automatically separate it from the electric net, at the same time showing the indication signal. It's green when the protector is normal, red when tripping. Remote signaling contact The products can be produced available with the accessory of remote signaling contact. If one or more of modular of the protector is in malfuction, the contact will be closed, and sending the malfunction signal. Principal parameters Maximum continuous operating voltage : Uc 75 150 275 320 385 440 660V~ Test grade:II Voltage protect level: Up< 350 550 1000 1250 1500 1750 2500V Maximum discharge current : (8/20μS) Imax 40kA Nominal discharge currrent: (8/20μS) In 10 15 20kA Remote communication terminal parameter
In three-phase four- line system , three phase lines and one zero line are connected protective device to the earth cable . (figure 1 ) . In normal situation , the protective device is high resistance , when the over voltage brings for electric network shocked by thunder or other reasons , the protective device will rapidly transmit in ns , then lead the voltage into earth and protect the electric equipment . As the surge voltage through the protective device and after disappear it will recover to high resistance and not influence the normal operating. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical Parameters : | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation 1. It is installed by standard 35 mm rail. 2. The earth cable should choose the double color wire 4mm?whose length is not longer than 500 mm. 3. To avoid the influence to the electric net after the protector is in malfuction, the protector connected to L line should be in series connect with a fuse. The appearance and installation dimension refer to the Fig. 3. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Adjustment, operation, maintenance 1. There's no need to adjust the protector after installation. 2. The protector can automatically protect the electric net should it's installed rightly. 3. When operating, check whether the modular scutcheon is red, at the same time check whether the indication red light is lighting, then can change the malfunction device. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
