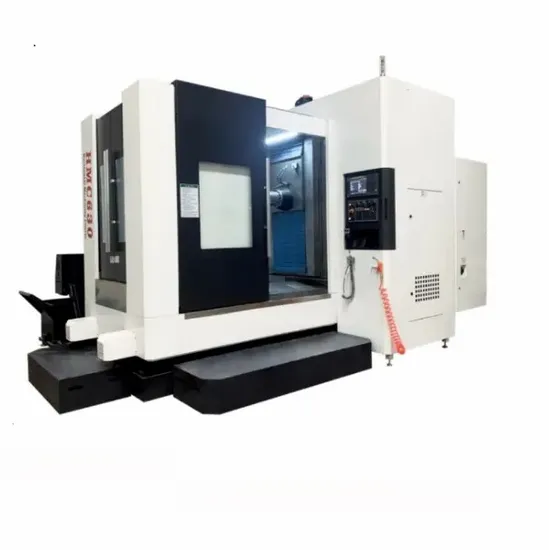

Sumore Hmc Machining Center 5 Axis CNC Milling Machine with High Quality

Product Description

Product Description
HMC400 Hmc500 Hmc630 Hmc800 Hmc1000 High speed 10000rpm ODM OEM HMC Machine factory sale CNC milling 5 Axis Horizontal CNC Machining Center
(Horizotnal macine center from small to big size, the web pages are limited, so please contact us for more details)
-----------------------
Quick Details Processing material: aluminum, copper, metal, wood, plastic, etc
Worktable size: 500x500mm / 630x630mm / 800x800mm / 1300x700mm / 1600x800mm
X/Y/Z travel:800x800x800mm / 1100x800x1100mm / 1600x1000x1100mm
Control system: GSK, SIEMENS, FANUC or customized
Tool changer: 16pcc, 24pcs ,40 pcsor customized
-----------------------
HMC500 HMC630 HMC800 HMC1000 cnc horizontal machining center belongs to heavy duty cnc machining center.The main spindle power is 11kw. It is new condition not used cnc machine center. This vmc machine is made in China. The main features are as below:1.X/Y/Z linear guide ture2.Taiwan spindle/ball3.way is available.4.Up to 16 tool storage ( optional )5.Ultimate 10000rpm spindle speed ( optional )6.Portable hand wheel7.Fully covered cabinet for safety8.1000mm X-axis travel9.Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in calories and could do milling, drilling, reaming, boring, reaming and tapping10.All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function. Enhance machining accuracy.11.The struction of the precision being connected with automatic lubrication device.12.Use the ballscrew with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidty.13.The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual struc screw/ bearing is available.
Product Parameters

Air pressure50kvaMachine weight11000kgMachine dimension6385X3120X3280mm
Model Number	HMC630
X-axis travel	1100mm
Y-axis travel	1000mm
Z-axis travel1	100mm
Spindle nose to table surface	100-1200mm
Spinlde center to table5	50-1050mm
Spindle taper	BT50
Max. spindle speed	6000rpm
X/Y/Z-axis feed speed	1-8000mm/min
X/Y/Z-axis rapid feed speed	20/12/20m/min
X/Y/Z-axis motor torque	30/30/30Nm
Positioning accuracy	0.008mm
Repeatability	0.005mm
Spindle motor	15-18.5kg
Table size	630X630mm
Motor torque	22Nm
T slot	100X18X5mm
Worktable rotation speed	1°
Worktable loading capacity	800kg
Work table positioning accuracy1	0"
Tool magzine capability/Style	40 pcs
Tool weight	25kg
Lenght of tool4	400mm
Diatmeter of tool	125mm

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
