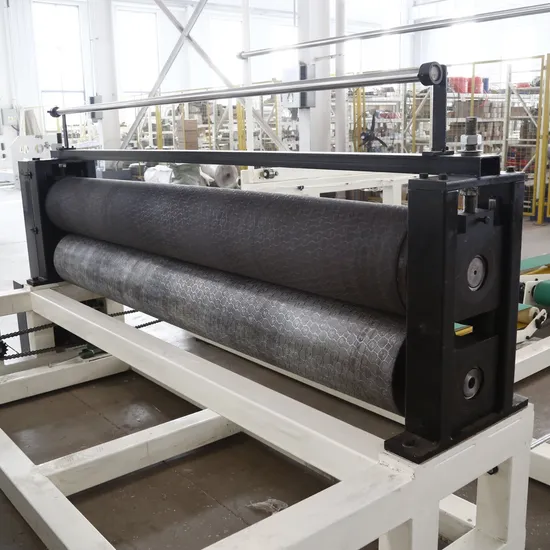

Full Automatic 2ply Toilet Tissue Paper Paper Machine Rewinder with Edge Embossing Patterns

Product Description

1) It is used to perforate and cut the raw material into various sizes according to the requested. The finished product is neat, in good order and with equality tension.
2) It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area.The highest production speed is 200-250 m/min.
3)This equipment is adjustable to meet the requested finished product of toilet paper and kitchen towel.
1.For paper width up to 2100 mm to make bathroom tissue, equipped with variable perforation length system to fit any length need.The speed of this rewinder is up to 260 m/min,including: back stands. Embosser units,rewinder. For jumbo rolls up to 1300 mm diameter, and with a pneumatic loading of jumbo roll system.
2.This model machine will automatically change logs and unload the finished products,and automatic allytrim and seal the tails of the logs,leaving a lip about 20 mm to make it easy for consumers to start using the rolls without tearing the paper at the seal.
3.All the driven system to be by means of timing belts,nylon belts and gears, for years of free maintenance. Electrical eves will be mounted on the different parts of the line to monitor the machine and stop it in case it runs out of paper cores or any other unforeseen problems.The lubrication systems will be provided on the major parts of the line.
4.The motor power is 7.5 kW. Variable frequency control depending on the final specifications and requirements
5.This line is to be controlled by a PLC of your choice.

Parent roll width	2100mm
Parent roll diameter	1300mm Up to1300mm
Core inside diameter of parent roll	3"(76mm)or as requested by customer
Machine speed	o-260m/min depending on model
Finished roll outside diameter	Kitchen 60-130mm
Perforation pitch	Adjustable
Sheet count	Increasing every sheet
Core outside diameter of finished rolls	35-50mm
Converting web	1-4 ply,15-30gsm
Installed power	7.5Kw-15Kw

Weifang Greatland Machinery CO., LTD.Weifang Greatland Machinery Co., Ltd. belongs to Greatland Group, which is specialized in paper onverting equipment from 2001.In 2015, we built up our new workshop occupied more than 30000 square meters. Greatland always devotes to research and innovation of our products. Apart from normal model, all roducts can be specially customized for our partners. Our products mainly include: Fully automatic high speed toilet paper production line, Fully automatic facial tissue paper production line, Fully automatic hand towel production line, Fully automatic napkin paper production line, Fully automatic pocket tissue production line, Fully automatic neck paper production line, Slitting rewinder series, etc. Annually our products are exported to all over the world with turnover USD 10million. We sincerely hope to establish more cooperation based on our trustworthy quality and in-heart service. Paying continuous attention on the development of paper converting products, GREATLANDers not only devote to creating more and more mutual benefits, but also do the best to improve spiritual pursuit for all of our partners. Sincerely hope we are getting better and better through our joint efforts.
Greatland has professional technical team for installation, commissioning, and related services, also has a very hole some file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.Within the quality guarantee, Greatland settle the problems on site.
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
