New Electro Magnet Still Plate Lifting Magnet for Manufacturing Plants

Product Description

√ Effortlessly elevate either single or multiple bunches of steel bars/rebars simultaneously, ensuring seamless operations.
√ Empowered to lift steel even when there are minor deformations, maintaining operational efficiency and adaptability.
√ Experience exceptional stability with deep magnetic permeability, offering a steadfast and reliable grip.
√ The motor precisely adjusts the beam length without interference from non-steel objects, ensuring smooth function.
√ Proud holder of our very own patent, Patent Number: ZL201020522632.1, underscoring our commitment to innovation.
Product Description
What is electro permanent magnetic technology?
Electro permanent magnet technology revolutionizes how magnetic fields are controlled, utilizing electrical power to toggle the magnetic states of permanent magnet materials. This cutting-edge technology empowers the attraction or release of materials autonomously, offering both magnetized and demagnetized states for diversified applications.
Magnetized state: Harness the power of instantaneous excitation currents through electromagnetic coils, orchestrating the switch in magnetic field states of reversible magnetic materials. As the magnetic field gracefully encircles the surface of the poles, it exerts a formidable adsorption force. Embrace the closed-loop magnetic field that guarantees zero magnetic loss, operating with unparalleled efficiency—no heat, no noise, and devoid of energy consumption. (See Figure 1.1)
Demagnetized state: By reapplying an instantaneous excitation current in the magnetized state, the electromagnetic coil ingeniously modifies the built-in circuit to alter the reversible magnetic field. This causes the magnetic field to converge within the permanent magnet, creating a non-magnetic surface and releasing the material. (See Figure 1.2)
About Electro Permanent Magnet
Unmatched safety defines our Electro Permanent Lifting Magnet system. Immune to power outages or short circuits, it requires no UPS battery support during operation. The permanent magnetic materials provide robust and unwavering suction, ensuring materials remain securely held until the operator initiates demagnetization. Trust in its superior safety features for the utmost peace of mind.
Electro permanent magnet advantages:
1. Economical, Energy-saving, Environmentally Friendly
Our Electric permanent magnet system only consumes electricity during brief moments of charging and demagnetization, operating power-free otherwise. It offers remarkable energy savings of over 95% compared to traditional electromagnets, significantly driving down operational costs.
Both the lifting permanent magnet and its control system boast lightweight designs, reducing equipment load and enhancing lifting capacity.
2. High Security
The Electro permanent lifting magnet's power comes from two distinct permanent magnetic materials, achieving a maximum magnetic force of up to 16kgf/cm2. With no need for continuous electrical power, it eliminates the risk of material drop during power failures or cable damages, ensuring steadfast security over time.
3. Easy to Use
Streamlined electronic controls offer simply charge and demagnetization buttons, facilitating ease of use. Magnetization and demagnetization are achieved within 0.1-1s, boosting operational efficiency. The system is devoid of wear parts, hydraulic oil, or compressed air requirements, ensuring reliable and maintenance-free longevity.
Upon demagnetization, the residual surface magnetic force is virtually zero, preventing any small magnetic particles from adhering to the magnetic pole. The smooth adsorption process avoids scratches and remnants, maintaining pristine conditions.
4. Unique, Flexible Product Design
Experience unmatched innovation with our lifting permanent magnet, featuring a pioneering modular design, dual magnetic source technology, and a uniquely refined product manufacturing process! Our exclusive internal structure redefines efficiency and performance.
5. Unparalleled Functionality
Safety and reliability are at the forefront of our Electro Permanent Lifting Magnet system. This cutting-edge system is incredibly secure, independent from power loss, and requires no UPS battery auxiliary system. The robust energy from permanent magnetic materials ensures continuous suction, guaranteeing the safety of materials. The system is engineered so that materials can only be demagnetized upon landing, providing ultimate security to end users.
Electro Permanent Lifting Magnet Versus Traditional Electromagnet

SEQ	Compare Content	Electro Permanent Lifting Magnet	Electromagnet
1	Magnetic	Permanent magnet Material: Reversible magnet steel,	Electricity: Magneticfield generated by Currentthrough the coil
	source	fixed magnet
2	Principle	The magnetic field is turned on or off by an	Power on generated magnetic field, power off no magnetic field
	mechanism	instantaneous current
3	Security	All steel surface, oil&water-proof, no aging issue	Epoxy resin sealed, may occur aging and shedding issue in5
			years later, need repair.
4	Reliability	The suction is constant and does not attenuate over time	Suction is influenced by the heat caused by current, the coil is
			easy aging if use long time.
5	Durability	Permanent magnet no magnetic attenuation, magnetic
	and	module is maintenance-free.	Internal coil aging fast, the UPS battery need to be replaced
	maintenance		regularly, need to preparethe accessories.
6	Operating	Only in the moment of magnetization and	Need long-term electricity power during working, big power
	costs	demagnetization need electricity, no need power	consumption, commonly known

Packaging & Shipping
Electro Permanent Magnet System Composition (Standard)
1. Electro Permanent Magnet
The core component of magnetic force, ensuring direct contact and flawless adsorption on the work piece.
2. Advanced Control System (including audio and visual signaling)
Manage magnetization/demagnetization seamlessly, while efficiently collecting and processing all signals with precision.
2.1. Optional Long-Distance Controller
A mini control cabinet tailored for Crane Cab or other space-constrained environments.
2.2. Optional Remote Controller
Compact mini control cabinet designed for Crane Cab or other limited spaces.
3. Cable Retracting Device
An efficient pull-in and out reel system for releasing and gathering cables effortlessly.
4. Beam
Designed to collect and transmit permanent magnet tension with precision.

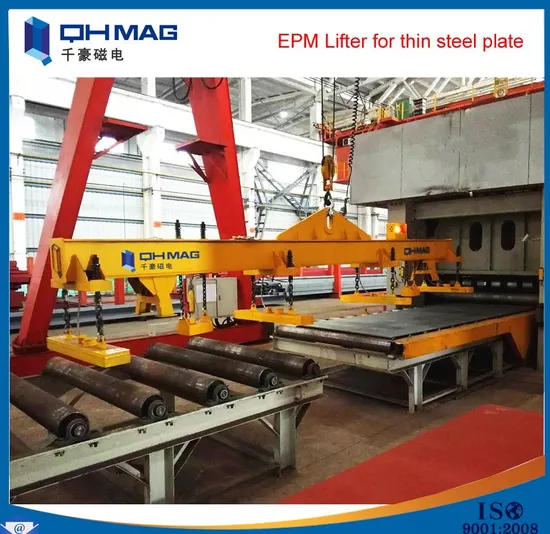

Product Pictures:
