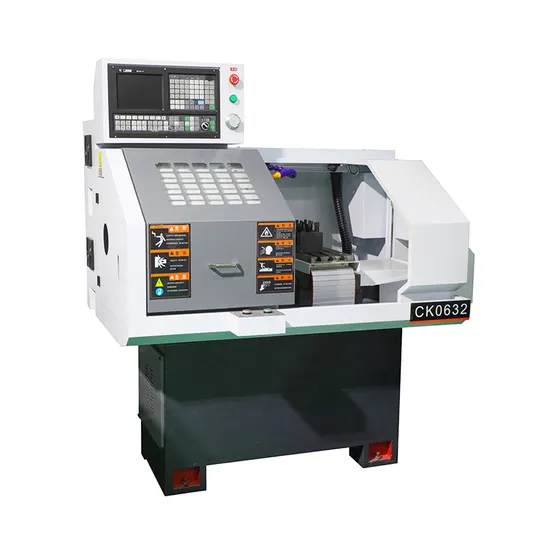

Ck0632 Small CNC Machine Hard Guide Rail Lathe Machine

Product Description

Product Description
Detailed Photos
Product Parameters
Standard Configuration:
Machine Model:CK0632(selectable 40mm spindle)
Specification of bed: 220*700 hard rail
Foot specification: 450*1000mm
Control system: Keyuan 980TB2 system
Clamping configuration: 1. Pneumatic chuck
Tool configuration: row tool post 3 pieces
Feed system:
1. X-axis lead screw: 2505*450 (Jiangsu Qidong Wangrun)
2. Z-axis lead screw: 3206*520 (Jiangsu Qidong Wanrun)
Bearing:
1. X axis: Luoyang bearing FL760204
2. Z axis: Luoyang bearing FL760204
3. Spindle: Renben bearing 7212DBB*7210DBB
Other configurations:
1. Electric oil pump 2. Water pump 3.encoder
Machine bed: Bed 250 casting

Parameter	SPECIFICATIONS	Units	CK0632
Machining Capacity	Maximum turning diameter over bed	mm	Φ300
	Maximum turning diameter over turret	mm	Φ100
	Maximum machining length	mm	100
	Maximum bar machining diameter	mm	32
	Diameter of spindle bore	mm	Φ40
	Maximum stroke of X/Z	mm	540/240
Power System	Spindle maximum spindle speed	r/min	3000
	Spindle Motor	KW	3
	Spindle Transducer	KW	4
	X/Z drive motor	N/M	4N/4N(Keyuan Original)
Tool Post	Height of rectangular tool shank section	mm	20
Precision	Repeat Positioning accuracy	mm	0.02
	Machining accuracy	mm	<0.02
	Spindle beat	mm	<0.02
Other	Hydraulic pump motor	kw	0.75
	Cutting fluid pump motor	kw	0.4
	Power supply power	KVA	7.5
	Machine weight	kg	600
	Machine Size	mm	1400x1000x1600

Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
