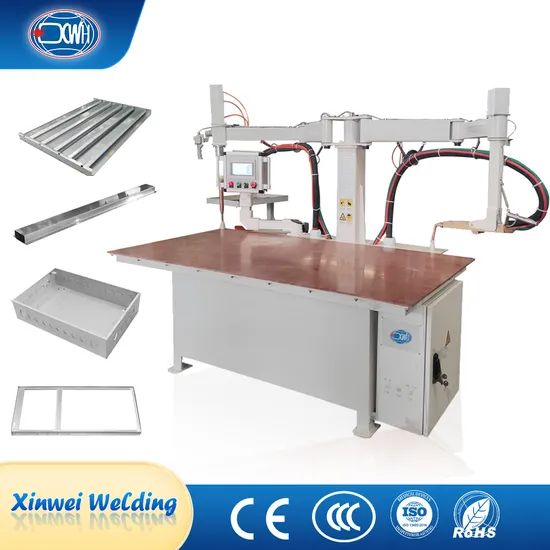

Rocker C Type Crank Arm Table Spot Welding Machine with Double Guns

Product Description

Winning by quality, precision to thrive; Dedicated, so professional! More details, please contact us!
Product Description Platform type spot welding machine is mainly designed for large metal workpieces in industries such as hardware, sheet metal, elevators, kitchenware, and automobiles.
Product Parameters

Item/Model	PTDN-80C	PTDN-100C	PTDN-125C
Rated Frequency (Kva)	80	100	125
Primary Voltage (V)	380	380	380
Frequency (Hz)	50/60	50/60	50/60
Max. Short Circuit Current(A)	16500	17500	18500
Rated Duty (%)	50	50	50
Dimensions (mm)	1500*600	1500*600	1500*600
Max. Pressure (N)	6200	6200	6200
Working Stroke (>=)	120	120	120
Water Flow (L/min)	20	20	20
Other	Can be customized according to your demand

Main Features 1. After welding, there are no welding pits on the outer surface of the parts, and the outer surface of the welding points is smooth or free from deformation, without the need for polishing treatment. The absence of secondary processing dust not only improves production efficiency but also improves the production environment.
2. The welding arm is a multi joint flexible welding arm, with a parallel joint structure that operates flexibly and has a larger welding range, making it easy to reach every point on the workbench.
3. The horizontal workbench is the entire lower electrode.
4. The welding gun adopts pneumatic control.
5. Equipped with a horizontal welding gun and welding products from different angles, it can be extended deep inside the box for welding, especially suitable for welding box type parts, achieving welding effects that are unparalleled by other welding machines.
6. There is a button installed on the handle of the welding gun, which can be pressed to directly weld, and a foot switch can also be configured.

7. Welding is controlled by a microcomputer controller, and fault self diagnosis welding parameters can be adjusted to store multiple sets of welding specifications. An automatic alarm device is set up. 8. The welding gun can be moved according to different positions of the welding point, making it lightweight, flexible, and fast, reducing labor intensity and making operation simple and convenient.
9. Adopts various different welding heads. Welding can be performed on workpieces of different structures.
10. The operation is simple, easy to learn, and there are no requirements for the operator.
