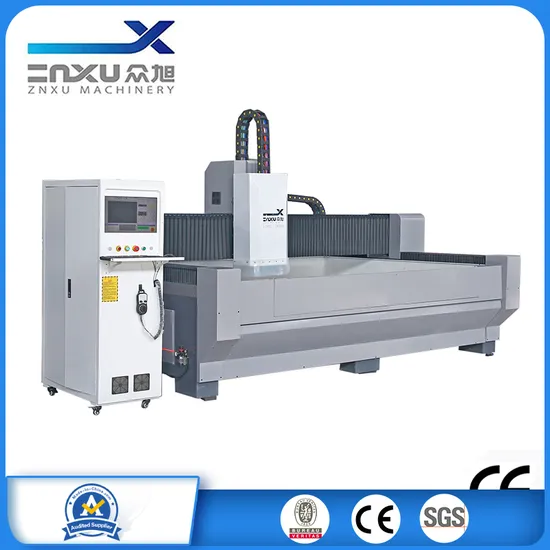

Affordable Zxx-C3018 Glass Curtain Wall Machining Center for Efficient Fabrication
| US$24,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Zxx-C3018
Application
Glass
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.05-0.1(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Structure
Horizontal
Type
CNC Machine
Glass Washing Machine Type
Waterjet
Glass Edging Machine Type
Milling Machine
Control System
CNC, Servo
Grinding Head Number
2
Product
CNC Glass Machinning Center
Fuction
Drilling Cutting Grinding Milling Carving Engrave
Thickness
3-25mm
Drawing
CAD Drawing
Heads No.
2
Process Speed
0-20m/Min
Application01
Sink Hole in The Glass Countertop of The Cabinet
Application02
Stove Hole, Pipe Hole
Application03
Shower Door Clamp, Hinge Hole, Handle Hole
Application04
Cabinet Door Invisible Handle Hole
Application05
Aluminum Profile Handle Hole and Hinge Hole
Application06
Electric Panel
Application07
Aquarium Stealthy Cover
Model No.
Zxx-C3018, 2021, 2513, 1812, 1015
Volt.
220V, 380V, 415V, 450V /50Hz, 60Hz
Transport Package
Standard Export Package
Specification
4000*2860*2200mm
Trademark
ZNXU
Origin
China
HS Code
8464901900
Production Capacity
20sets/Month
Product Description
| Description | unit | parameter |
| Model No. | 1 | ZXX - C3018 |
| Colum | Set | Heavy iron |
| Control System | set | LEETRO |
| Axis | PC | Cutter change : by hand |
| Diam:ยข125 | ||
| coller:cool water | ||
| RPM:24000 | ||
| POWER:7.5KW | ||
| Drive | set | YMPC |
| Invertor | kw | BEST : 11KW |
| Max glass size put | mm | 3000*1800mm (Length can be no limited by adding table) |
| Max Grinding Size | mm | 2500*1450mm |
| Max router (milling) size | mm | 2700*1650mm |
| Z-axis space height-open | mm | 380 |
| motor | set | CHINT |
| Internal of machine structure | set | Half cover/ waterproof design |
| Work table load weight | KG | 120 |
| Positioning accuracy | mm | 0.01 |
| Repeated positioning accuracy | MM | 0.01 |
| Max speed (empty) | M/MIN | 15 |
| Max process speed | M/MIN | 3M/MIN |
| Stroke protection | PC | Omron,Japan |
| GEAR | PC | GERMAN DMJ-1.5M High precision |
| Guide Screw bearing | PC | HIWIN |
| Model: Z axis with diagonal contact | ||
| Lubrication system | set | Origin : TAIRUN |
| Lubrication automatically | ||
| Cooling type | set | Water pump |
| Main axis cooling | set | Automatic thermostat cooler |
| Main electric | set | CHINT / SCHNEIDER |
| Volt./Frequecny | KW | AC/380v/10KW/50HZ (AS PER CUSTOMER REQUEST) |
| Machine Size | mm | 2250*4000*2200mm |
| weight | KG | 2200 |
| power | KW.H | 11.1 |
1.Provide on-site installation and after-sales. (All the freight cost as well as hotel, food caused by this come to the buyer's part, besides, technicians should be paid USD100/ day/people.)
2. The machine is sent as one whole part, no seperated. We will send the operation manual and CD together with the machine. Customer can learn how to use via the manual.
3.We warmly welcome you or your representative to learn how to install and use the machine in our factory. Moreover, the training cost as well as the accommodation is for free.
4. One year warranty period,life-long maintenance
the machine with main parts(excluding the consumables)shall be changed free of charge when problems happened during the warranty period.
5. 24 hours technical support by email or skype or whatapp , or wechat.
