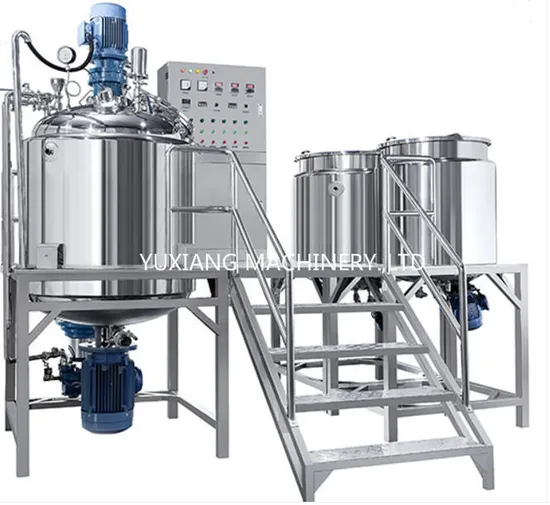

Vacuum Homogenizer (Top) Emulsifying Machine Fixed 1000L

Product Description

Vacuum emulsifying machine for high shear mixer hair ointment mixing machine with vacuum homogenizer emulsification Product Application Product Specification

Model	Main pot	Water pot	Oil pot	Main pot power			Hydraulic System	Vacuum pump power(Kw)
		Volume(L)							Wall scraping	Homogenizer
RHJ-5L	5L	-	-	0.18	1.1	0.75	0.55
RHJ-10L	10L	7	5	0.37	1.1	0.75	0.75
RHJ-20L	20L	14	10	0.75	1.5	0.75	0.75
RHJ-50L	50L	35	25	1.1	2.2	1.5	1.5
RHJ-100L	100L	70	50	1.5	3	1.5	1.5
RHJ-200L	200L	140	100	2.2	4	1.5	2.2
RHJ-300L	300L	210	150	3	5.5	1.5	2.2
RHJ-500L	500L	350	250	4	7.5	1.5	2.2
RHJ-1000L	1000L	700	500	5.5	11	2.2	3

We can customize any model according to your needs.if you have any questions contact us, our sales manager is online 24 hours. Products Description The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements. The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolvemanyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period. High Shear Homoegnizer adopts German Technology, 0~3500rpm variable speed, and maximum speed can reach to 4500rpm,the shear degree is about 0.2~5um. Company Profile Certifications Product Packaging FAQ 1. Who are we? We are a professional machinery manufacturer on Vacuum emulsifying mixer, filling machine, RO water treatment, capping machine and labeling machine…etc for cosmetics , food and pharmaceuticals industries over 20 years.We have two factoriesOne is in Jiangsu Province, Another is in Guangzhou next to our office. 2. How can you control the quality before delivery? Quality control based on ISO 9001, GMP requirements. All processes under QA monitoring,our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we wil take a video to record the testing procedure and send the video to you. 3. How long is your warranty? After warranty, what if we encounter problem about the machine? Our warranty is one year.After warranty we still offer you lifetime after-sales service, anytime you need we are there to help. If the problem is easily to solve, we will shoot a solution video for you. If video doesn't work out, we will send engineer to your factory. 4. Are your machines difficult to operate? How do you teach us using the machine? Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines'functions and to teach you how to use them.If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines. 5. I'm new in our industry,but I'm planing to set up a factory, what canI do? We will design the most suitable proposal based on your actual situation, such as the daily production,raw material formula, factory layout, etc. we would like to introduce some excellent suppliers of ingredients, bottles, labels, etc. if you need them. We will send engineers to the site for installation, training and commissioning.
