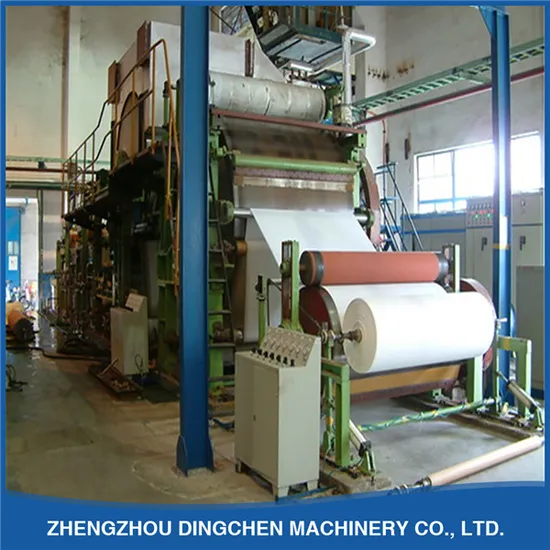

Middle Size High Efficiency Tissue Paper Machine

Product Description

1880mm 5TPD recycled raw material for tissue paper making machine
Technical parameters
1, raw material: Waste paper and pure wood pulp
2. Output paper: High and middle grade tissue paper
3. Output weight: 13-36G/M²
4. Net paper width: 1880mm
5. Wire width: 2150mm
6. Capacity: 5T/D
7. Working speed: 150m/min
8. Rail gauge: 2900mm
9. Drive: AC converter frequency conversion, adjustable speed, drive step by step
10. Standard of design: National standards for the export of equipment.
Main structure of equipments
1. Cylinder part:
Cylinder section: Φ 1500mm × 2150× 2700mmmm stainless steel cylinder 3 sets,
Φ 450mm × 2150× 2700mmcouch roll 3sets, reverse roll 1set, rubber hardness HSD
38° C± 2
2. Dryer part:
Φ 2500mm× 2150mm× 2700mm alloy dryer can (1PC); Φ 2500mm× 2150mm× 2700mm
Coach roll (1 PC); Pneumatic pressure device, rubber hardness HSD 93° C± 2. Equipped
With duplex air bells cap.
3. Reeling part: One roll cylinder (Φ 1000mm× 2850mm), reel paper on sweat cylinder
4. Rewinding and cutting:
Φ 800mm× 2100mm× 2700mm cooling cylinder (1PS), Φ 240mm× 2100mm× 2700mmrubber
Rider rubber roll (1PC), rubber hardness: HSD 35° C± 2. Winding on the sweat cylinder.
5. Transmission & Control Division: AC frequency converter and adjustable speed

NO.	Equipment	Qty(set)
1	1880mmhigh speed toilet tissue paper machine	1
2	Double-dryer exhaust hood	1
3	propeller fan	1
4	Vat former	1
5	roots pump	1
6	Suction box	2
7	High consistence hydra-pulper	1
8	double disc refiner	2
9	pressure screen	1
10	De-sander 12pcs	4 group
11	thruster	4
12	pulp pump	2
13	pulp pump	6
14	white water pump	2
15	Two-phase flow pump	4

contact & negotiate!!! John:8615638823327
company:
we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate

Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service

The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation

We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company.
