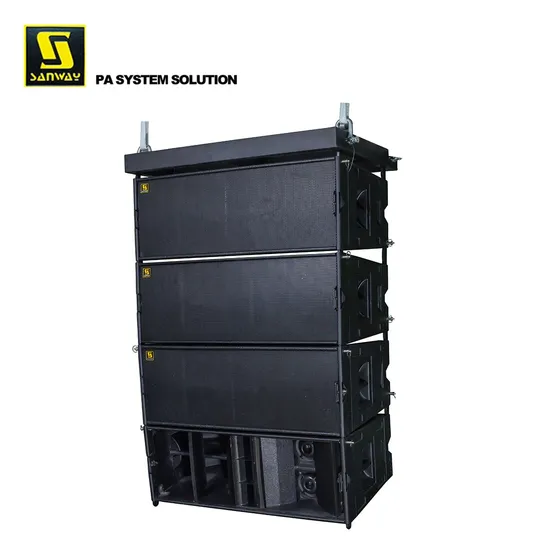

W8LC Three Way Line Array Loudspeaker
| US$800.00 | 4 Pieces (MOQ) |
Basic Info.
Model NO.
Sanway W8LC
Player Type
Without Player
Speaker System Audio Output Mode
Stereo
Finish
Plywood
Control
Wired
Sound Channel
2
FM
Without FM
HDMI Quantity
4
Type
12 Inch, Three Way
Dimension(Hxwxd)
367X1000X550mm
Transport Package
Durable Cartons or Flight Case
Specification
12 Inch
Trademark
SANWAY OR OEM
Origin
Made in China
HS Code
8518220000
Production Capacity
500PCS Per Month
Product Description
Detailed Product DescriptionSingle 12" Neodymium Line Array Cabinet Box W8LC Three Way Line Array Loudspeaker
1>. Line Array Speaker
2>. Mini Line Array System
3>. Audio Speaker Line Array
4>. Single 12" Neodymium Line Array
FEATURES
1). Compact, high performance three-way line array enclosure
2). High power - maximum SPL 129dB continuous, 135dB peak (single unit)
3). Superior bass impact - all horn design
4). Wide bandwidth - 60Hz-18kHz ± 3dB (single unit)
5). True 90° (-6dB) horizontal MID and HF pattern control
6). Very smooth off-axis response - useable out to 120° (-10dB)
7). Compatible with the full-sized W8L Line Array
8). Fast, integral rigging system with variable splay angles from 0° To 7.5°
9). Common grid may be used for flying or ground stacking
Specifications:
| line array audio speaker system W8LC | |
| Frequency Response (±3 dB) | 60 Hz - 18 kHz |
| Sensitivity (1w/1m) | LF 103 dB / MF 106 dB / HF 109 dB |
| Maximum SPL | LF 135 dB / MF 135 dB / HF 135 dB |
| Nominal Impedance | LF: 8 ohms MF: 8 ohms HF: 8 ohms |
| Power rated(rms) | LF: 400 watt MF: 200 watt HF: 100 watt |
| Peak Power handling | LF: 1600 watt MF: 800 watt HF: 400 watt |
| Nominal Dispersion | 90ºH optional×7.5ºV |
| Dimensions (H x W x D) | 367 mm x 1000 mm x 550 mm |
| Enclosure Material | 18 mm plywood |
| Surface Finished | Textured grey wear-resistant paint |
| Grille | heavy grey perforated steel framed |
| Net weight | 58kg |
| Low Frequency Driver | 12" high effeciency Neodymium magnet driver |
| Mid Frequency Driver | 2×6.5" high effeciency Neodymium magnet driver |
| High Frequency Driver | 3×1" effeciency Neodymium magnet driver |
| Input Connectors | Speakon NL8×2 |
