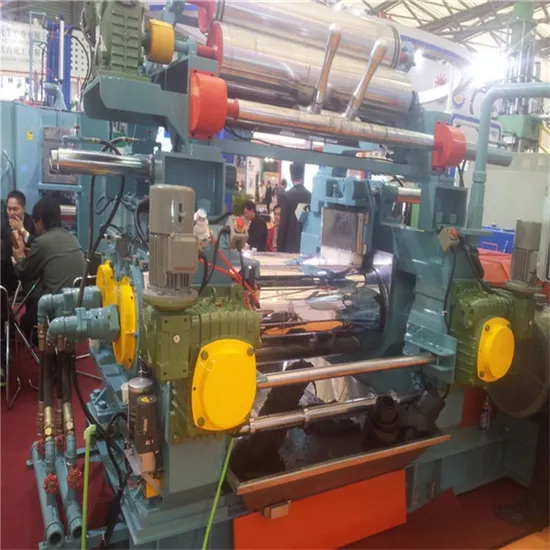

Compact Structure Rubber Open Mixing Mill/Zsy Rubber Open Mixing Machine
| US$4,200.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XK-250/XK-360/XK-400/XK-450/XK-560
Power Source
Electric
Type
Open Mixing Mill
Type of General Rubber Machinery
Mixing Roll
Type of Tire Machinery
Tire Shaping and Curing Press
Certification
ISO/Ce/BV
Machine Type
Rubber Open Mixing Mill
Power
5.5-245kw
Voltage
220-510V
Rollers
2
After-Sale Service
Engineer Overseas Available
Working Experience
More Than 20 Years
Machine Color
Customized
Transport Package
Exporting Standard (Wooden Box Packing)
Specification
CE/SGS/BV/ISO9001/; 2008
Trademark
EENOR
Origin
Qingdao
HS Code
84778000
Production Capacity
500 Set/Year
Product Description
Compact Structure Rubber Open Mixing Mill/ZSY Rubber Open Mixing MachineMain features:
1) The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.
2) The machine is equipped with an overload protection device to prevent the main components from being damaged.
3) The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4) The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
5) The base frame is a whole framework, which is convenient for installation.
6) Stock bender for direct rubber sheet and knife to cut as your need to assemble.
7) Auto-lubrication sysytem for greese or oil and match bearing bush.
8) we have CE, SGS, ISO 9001 certification.
Type | Xk-160 | Xk-250 | Xk-300 | Xk-400 | Xk-450 | Xk-560 | Xk-660 |
Working diameter of rolls(mm) | 160 | 250 | 300 | 400 | 450 | 560 | 660 |
Working length of rolls(mm) | 320 | 620 | 750 | 1000 | 1200 | 1530 | 2130 |
Front roll surface speed(m/min) | 8.95 | 14.1 | 15.1 | 18.65 | 24.26 | 27.72 | 28.6 |
Friction ratio | 1:1.35 | 1:1.17 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.24 |
Max.nip(mm) | 4.5 | 8 | 8 | 10 | 15 | 15 | 15 |
Capacity per.batch(kg) | 1-2 | 8-15 | 15-20 | 18-35 | 25-50 | 35-50 | 165 |
Motor power (kw) | 5.5 | 18.5 | 22 | 37 | 55 | 90 | 245 |
Overall dimension(mm | 1380*860 *1320 | 3400*1500 *1800 | 3580*1550 *1695 | 4350*1850 *1785 | 5200*2380 *1840 | 5845*2284 *1978 | 7465*3662 *2080 |
