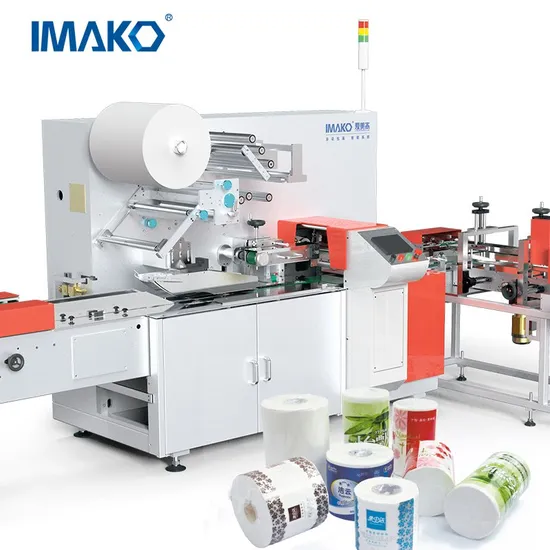

Toilet Roll Paper Packing Line

Product Description

1. Single Toilet Roller Paper Packing Machine

Model		TP-R200SD
Product speed		20-180 rolls/min
Max. film width		430mm
Toilet roll dimension	Length	80-220mm	Beyond this rang, customize machine.
	diameter	80-125mm
Total power		12 KW
Motor power		3.2KW
Machine weight		1800KG
Machine noise		≤78DB
Qualified rate of production		≥97%
Machine size (L*W*H)		5500X3300X1600mm
Power supply		220V 50HZ
Packing film		BOPP,SPP
Film thickness		0.018-0.03mm

2. Toilet Roll Paper Bagger
Machine Description
1. Using PLC and servo motors. Drive rolls, belts, fetching bags, position, infeed bags and sealing portion should be driven by servo motors. Product transfer, feeding, pushing, bag fetching, bag opening, trim collection are full automatic.
2. Sealing: Gusset format, heat sealing and sealing and sealing edge is straight and no burrs. (the part have own temperature control system.)
3. Central contral system of negative press, lower power consumption.
4. Automatic exclude fault bags without stop, air power contral system, Automatic error display alarm, Servo overload protection.
5. Max speed: 22bundler/min
All size of and stable single and multi packing machine of tissue paper, napkin paper are available. Other items of folding and log saw are available as well with reasonable price.We provide very good and quick service.
The assortment of product provided by us is recognized amongst customers for their smooth and easy operation, The Toilet tissue paper packing machine by us is obtainable in different sizes for the jumbo roll, this tissue packing machine had got CE and UL and ISO Certificate
Company Profile
Imako are professional packing machine designer and manufacture.
Our full automatic tissue packing machine is suitable for Solo Wrapper and Bundler for Toilet Rolls, Kitchen Towel Rolls, Facial Tissue, Napkin Tissue, Pocket Paper and Other Household Paper.
About Us
IMAKO has been dedicated to sanitary tissue packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.
IMAKO power comes from three aspects:
A professional team with rich practical experience in serving customers in the tissue industry for many years!
Provide customers with continuous and stable technical support and assistance!
Always adhere to a strong, innovative and leading corporate culture!
Nothing is the best but can be better and better. Choose our products to give you the best experience!
After Sales Service
Paymentterm:T/T,30%deposit and 70% before delivery.
Delivery:50 days upon receiving deposit.
Guarantee:One year.(The following problems are excluded from the warranty:due to accidents,misuse,misapplication,storagedamage,negligence,or modification to the Equipment or its components.)
After service:If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
