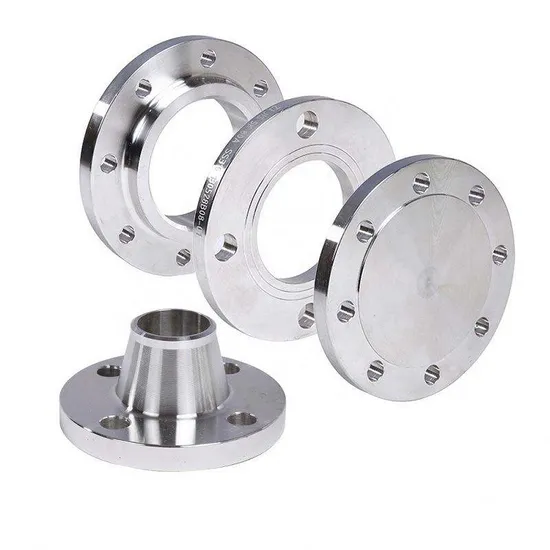

Stainless Steel Butt Weld Fittings Large Diameter Butt Weld Flanges with Neck

Product Description

Product Description

Product Name	din pn16 stainless steel 316l flange ansi b16.5 flat face flange
Type	Elbow, Tee, Reducer, Tube cap, Flange, etc.
Material	Stianless Steel, Nickel Alloy
Standard	GB,AISI,ASTM,DIN,EN,JIS
Grade	Stainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 32760 / 253MA / 254SMo / XM-19 / S31803 / S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65 etc
	Monel 400 / Monel K-500
	Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750
	Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT
	Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926
	Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263 / L-605
	Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22
	Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X / Hastelloy N
	PH stainless steel 15-5PH / 17-4PH / 17-7PH
Specification	Standard: OD: DN15~2000 THICHNESS: SCH10/10S SCH20 SCH30 SCHSTD SCH40/40S SCH60 SCH60 SCHXS SCH80/80S SCH100 SCH120 SCH140 SCH160 SCHXXS SCH5S
	Nonstandard
Application	Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc.
Inspection	ISO,SGS,BV and so on
Delivery Time	15-30 days
Packaging	Waterproof polybag, wooden box
Payment	T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders.
Sample	Free

Weld Neck Flanges Weld Neck Flanges are one of the most common types of flanges used in high-pressure applications. The design features a long tapered hub that provides excellent reinforcement at the junction where the flange is welded to the pipe. This flange type is ideal for applications involving high stress due to the seamless transition between the flange and the pipe, which helps to reduce stress concentration. Industries such as oil and gas, petrochemicals, and nuclear energy heavily rely on Weld Neck Flanges for their durability and ability to withstand extreme pressures and temperatures.
The welding process involved in attaching Weld Neck Flanges ensures a permanent, leak-proof connection, making them suitable for critical applications where safety is paramount. However, the installation of Weld Neck Flanges requires skilled labor and specialized equipment, which can increase overall costs. Despite these challenges, the benefits they offer in terms of reliability and longevity make them a preferred choice for many industrial applications.

Socket Welding Flanges
Socket Weld flanges were initially developed for use on small-size high pressure piping. Their static strength is eoual to Slip On flanges, but their fatigue strength 50% greater than double-welded Sip On flanges. The connection with the pipe is done with 1 fillet weld, at the outside of the flange. But before welding, a space must be created between flange or fitting and pipe.
The purpose for the bottoming clearance in a Socket Weld is usually to reduce the residual stress at the root of the weld that could occur during solidification of the weld metal. The image shows you the X measure for the expansion gap. The disadvantage of this flange is right the gap, that must be made. By corrosive products, and mainly in stainless steel pipe systems, the crack between pipe and flange can give corrosion problems. Detailed Photos
Product Parameters
Company Profile
TOBO INDUSTRY (SHANGHAI) CO., LTD Located in Baolong Center, Jiading District, Shanghai, the company has 5 factories to provide customers with the products they need, and the group factory covers an area of 800 acres As a Top 10 in the field of pipe flange manufacturing, the company has been committed to providing high-quality pipe flanges to customers around the world for many years. Since its establishment in 1984, the company has stood out in the fierce market competition by virtue of its profound understanding of the industry and continuous technological innovation. The company has 15 sets of advanced production equipments and 6 product production lines. From raw material inspection to product molding, every step of the process strictly follows international standards and industry norms. Our pipe fitting flange products cover a wide range of types and specifications, which can meet the diversified needs of different customers in the fields of petroleum, chemical industry, electric power, construction and so on. The quality of our products is stable and reliable, with excellent performance in key performance indicators such as corrosion resistance and compression resistance, which are trusted by our customers. In terms of product research and development, the company has its own team of engineers, who have been engaged in research and development positions for 5-8 years, and are able to solve the problems and difficulties we may encounter in product production and sample processing in real time. In addition to product quality and technological innovation, the company also focuses on customer service. We have established a perfect pre-sale, sale and after-sale service system to provide customers with all-round support. Whether it is product consultation, order processing or after-sales maintenance, we can make our customers feel our professionalism and attentiveness. Looking to the future, TOBO INDUSTRY (SHANGHAI) CO., LTD. will continue to uphold the business philosophy of "quality first, customer first, innovation and development", and constantly improve its own strength to provide customers around the world with better quality pipe fitting flange products and services, and contribute more to the development of the industry.
Our Advantages
FAQ Q1. What is your kinds of packing?
A: Pallet; wood case, carton box;. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% balance against bill of ladiong copy; or L/C at sight. Q3. How about your delivery time? A: Generally, it will take 7 to 15 days for 1*20ft, 15-20 days for 1*40ft after receiving your advance payment. Q4. Can you produce according to our samples? A: Yes, you can send samples to us and we can check your quality and produce as per your samples or technical drawings. Q5. Can I get samples? A: Yes, small samples are usually free with express service expense at customer's cost. Q6: Is factory visit or inspection acceptable? A: Yes,factory visit is always welcomed and inspection like third-party inspection okay. Q7: Do you attend any expo? A: Yes, usually we attend sign expos in Shanghai twice in a year (one in March and the other in September). And we attended Sign Asia expo in IMPACT, THAILAND. In future we will add China Import and Export Fair (Canton Fair) into our exhibition list, also some international expos which will be hold in different countries. Q8: How about the after-sale service? A: If there has any quality problems when you receive our products, show us photos and after discussing we will afford the lost from next order.
