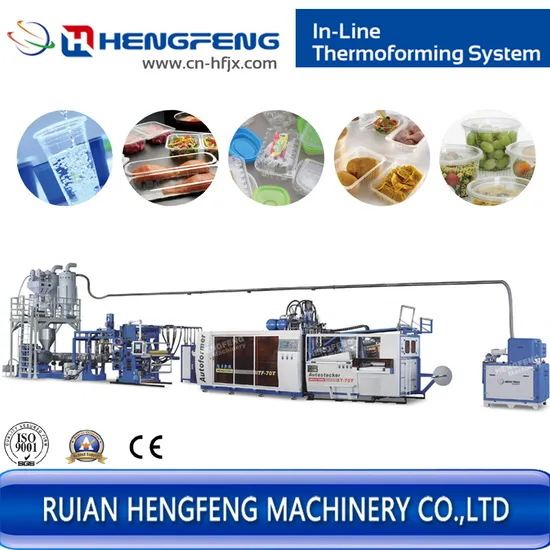

Fully Automatic Inline PP HIPS Sheet Extrusion Line and Thermoforming Machine
| Negotiable | 1 SET (MOQ) |
Basic Info.
Model NO.
IN-TF70T-H
Column number
Double Column
Molding Method
Pressing
Automatic Grade
Automatic
Raw Material
PP, PS
Driven Type
Mechanical(Cam)
Customized
Yes
Transport Package
Sea-Worthy Packing
Specification
CE Certificate
Trademark
HENGFENG
Origin
China
HS Code
84774090
Production Capacity
35cycles/Min
Product Description
Fully Automatic Inline PP HIPS Sheet Extrusion line and Thermoforming MachineMain Technician Parameter:
| Extruder Main Technical Parameter | |
| Screw Diameter | Φ120mm |
| Screw L/D | 33:1 |
| Max.Output | 500kg/hr |
| Extruding motor power | 160kw |
| Valid Die-head Width | 850mm |
| Material Thickness Range | Min0.2mm;Max2.5mm |
| Roller Diameter | Φ450x1000mm |
| Thermoformer Main Technical Parameter | |
| 1- Max. Forming Area | 685×320mm |
| 2- Max. Forming Height | 180mm |
| 3-Mold Clamping force | 350Kn |
| 4-Sheet Width | Max 720mm; Min 550mm |
| 5-Sheet Thickness | 0.35mm-2.5mm |
| 6-Heater Specification | Ceramic Heater up and down 130kw |
| 7-Heater Control | Omron Temperature module and PLC match with control |
| 8-Forming Method | Air pressure forming & driven by Cam |
| 9-Operation Method | Fully automatic with touch screen control |
| 10-Material Feeding | Servo Motor 4.4kw |
| 11-Max. Sheet Rolling Diameter | Φ1200mm |
| 12-Air Pressure | 0.7-0.85mpa |
| 13-Water Consumption | 50L/min |
| 14- Air Consumption | 3000L/min |
| 15- Max.Speed | 35 Cycles/min |
| 16- Power (Three Phase Four Wire) | 380V,50Hz,3Phase |
| 17- Main Motor Power | 11kw |
| 18- Scrap Rewinding Motor Power | 0.55kw |
| 19- Machine Weight | 13000kg |
| 20- Machine Dimension | (L)11000×(W)3650×(H)3500mm |
Packaging shipping:
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder,Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
Please contact us if interesting further informations: Cell/Wechat/Whatsapp
