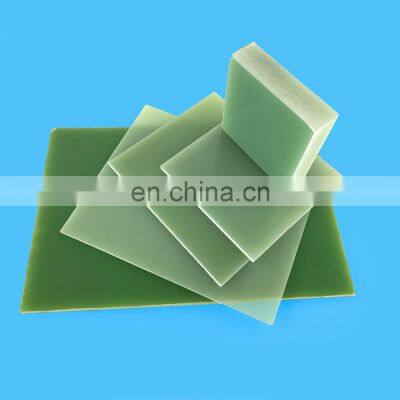

High Thermal conductivity engineering plastic FR4 sheet

Product Description

Product Description
Specification

Setting Information
Type	ESD, Common
Density	1.9-2.1
Color	Green/Black/Yellow
Size	1020*1220mm;1220*2440mm
Sheets Thickness	0.5-30mm
Temperature Resistance	180-200°C
Flame retardant	UL94 V-0
Tensile Strength	≥340MPa

Product Description
Product Details
• FR-4 (or FR4) is a grade designation assigned to glass-reinforced epoxy laminate sheets, tubes, rods and printed circuit boards (PCB). FR4 is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).
Product Details
• "FR" stands for flame retardant, and denotes that safety of flammability of FR4 is in compliance with the standard UL94V-0. FR-4 is created from the constituent materials (epoxy resin, woven glass fabric reinforcement, brominated flame retardant, etc.) by NEMA in 1968.
FR-4 Epoxy Fiberglass Sheet features
• Good mechanical workability.
• Good heat resistance and moisture resistance.
• In high temperature electric performance is stable.
• Higher mechanical properties and dielectric properties.
• In the middle temperature with high mechanical properties.
FR-4 Epoxy Fiberglass Sheet applications
• Used in mechanical, electrical and electronic high insulation structure parts.
• Used in high-performance electrical insulation requirements.
• Chemical machine parts.
• General machines parts and gear, generators, Pads, base, baffle.
• Generator, transformer, fixture, inverter, motor
• Electric insulation component.
