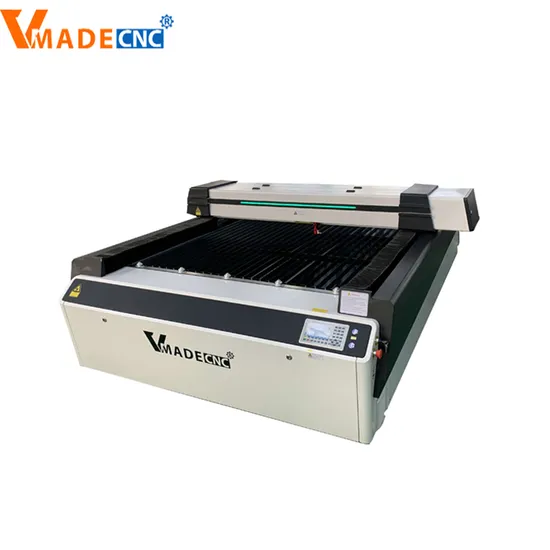

1325 180W Wood CNC Engraving Machine for Acrylic/MDF CO2 Laser Cutting Machine

Product Description

1325 180W Wood CNC Engraving Machine for Acrylic/MDF CO2 Laser Cutting Machine
Product Description
This model VLC1325 laser engraver cutter machine is based on various types of customer requirements, combined with our many years of equipment production experience, the use of a variety of advanced technology and special design, to achieve the perfect unity of the two functions of sculpture and cutting.
The co2 laser engraving cutting machine runs fast with simple operation and low cost; Theengraving effect is good, no burr on the cutting edge, no secondary grinding, less cutting waste, carving depth of the best laser engraving machines can be adjusted independently and with high precision.

Details
1. High-speed inner slide: the cutting speed of this laser engraver cutter machine is very fast, greatly improving work efficiency.
2. Convenient operation interface: Advanced LCD screen, the laser engraver cutter machine supports PC and USB2.0 ports, DSP offline control system, the user interface is good, easy and simple.
3. Cover protection: sealed chassis design of the co2 laser engraving cutting machine to ensure the safety of processing environment, a unique cover protection design to ensure that operators open the laser engraver cutter machine cover, the laser power supply to suspend work, to protect the safety of the operator.
4. Visualization working path: The laser is invisible light, in order to let the operator more specifically process the concrete place, the industrial laser engraving machine adopts the red light indication method to realize the precise positioning of the laser beam.
5. Optional electric lifting platform: up and down to adjust the working height of thebest laser engraving machines, to meet the processing requirements of different thickness of the object. At the same time optional knife working table of the co2 laser engraving cutting machine is suitable for different processing materials.
6. Drawer ladder design: it is easy for the best laser engraving machines to collect and obtain the cutting object.
Technical Parameter

Effective working area	1300*2500mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	Reci
Working table	Honey comb and knife strip, double working table
Lifting table	Automatic up and down
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa RDC6442S
Control software	RDWorks V8
Wifi connection	Yes
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5000 cooling
Water protection system	Yes
Focus	Automatic focus
Blow-off system	Air pump for the laser head, Air blower for the machine
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 110V±10% 50/60Hz, single phase or AC 220V±10% 50/60Hz, single phase
Certificate	CE/FDA

Samples
The industrial laser engraving machine is widely applied in garment materials,advertising,wood materials,etc. nonmetal materials.
1. Garment materials: textile carving, leather carving and cutting, cloth carving, shoe carving, fabric carving,denim carving, toy cutting, wool cutting,carpet carving and cutting, denim carving and cutting.
2. Advertising material: such as plastic engraving and cutting, acrylic engraving and cutting,PVC plate engraving and cutting, rubber plate engraving, organic glass engraving, seal engraving,organic glass engraving, granite carving, plastic engraving,marble engraving, Paper carving and cutting,EVA material carving.
3. Wood materials: MDF carving,wood carving and cutting, plywood cutting.
