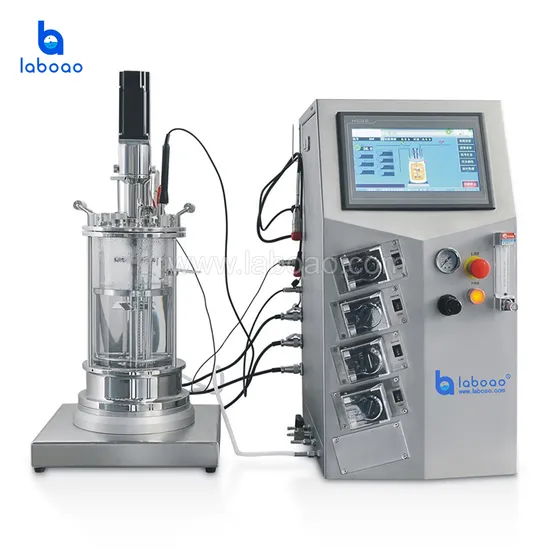

Laboao 10L Glass Bacteria Bioreactor Microbial Culture Fermentation Bioreactor
Basic Info.
Model NO.
LBR-10GJ
Type
Fermentation Extraction
Material
Stainless Steel
Capacity
<50L
Structure
Glass Biological Fermentation
Pressure
Negative
Agitator Model
Frame Agitator
Tower Reactor Type
in Situ Sterilization
Heating
Electric Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Product Name
Bioreactor Fermenter
Material of Tank
316 Stainless Steel Bottom Jacketed Ws
Volume
15L
Name
Desktop Two Conjoined Sterilization Glass Bioreact
Application
Chemical Reaction
Stirring Method
Magnetic Coupling and Shaft Coupling
Sterilization Method
off-Site or in-Site Autoclave Sterilization
Basic Configuration
Temperature, Speed, pH, Do, Defoaming, Ventilation
Usage
Optimization of Growth Medium
Control Parameters
Temperature, Rotation Speed, Humidity.
Control System
Control System
Function
Function
Perfect Feeding System
an Feed Regularly and Quantitatively;
Weight
40-220kg
Power
220V/380V
Transport Package
Plywood Case Package
Specification
LBR-10GJ
Trademark
LABOAO
Origin
China
Production Capacity
1000sets/Month
Product Description
LABOAO 10L Glass Bacteria Bioreactor Microbial Culture Fermentation BioreactorTotal volume: 10 1itres, Working volume: 7 litersStainless steel cylinder combines with glass partly. It uses a large area of highly refractory glass to observe material easily. Magnetic force stirrer without axes sealing. There is no possibility to leak out the bacteria. The view is spacious. The agitation system is hanged up. There is no thimble at the bottom. Ratio of diameter to high: 1:2.2
Feature
| No | Item | Description |
| 1 | Vessel system | Total volume: 10 1itres, Working volume: 7 liters Stainless steel cylinder combines with glass partly. It uses a large area of highly refractory glass to observe material easily. Magnetic force stirrer without axes sealing. There is no possibility to leak out the bacteria. The view is spacious. The agitation system is hanged up. There is no thimble at the bottom. Ratio of diameter to high: 1:2.2 |
| 2 | Sterilization method | Off-site sterilization autoclaves |
| 3 | Aeration system | Include rotameter, aeration filter |
| 4 | Agitation system | GJ:Mechanical sealing system at the top of the fermenter; high-powered stirring oar, antifoam oar; AC electrical machine: infinite speed variation; rpm in the 1L germ fermenter: 70~1000rpm±1%,The height of the stirring oar can be adjusted, too. |
| 5 | Temperature control | Interlayer electric calefaction, auto-control |
| 6 | Ventilation control | MAir Oxygen O2 Ventilation 0-1vvm Nitrogen N2 Ventilation 0-1vvm Carbon dioxide Ventilation 0-1vvm Four way intake Ventilation 0-1vvm Manual control of Rotameter |
| 7 | Antifoam control | Automatically check foam, automatically add antifoam by peristaltic pump. |
| 8 | Feeding control | Control by peristaltic pump switch, automatically feeding and computation. |
| 9 | pH control | Automatically add acid, alkali by peristaltic pump and control pH accurately. |
Detailed Photos
| No | Parameter | Guideline | Controller data processing function |
| 1 | PH | Displaying range: 0.00~14.00±0.01 Auto-control range:2.00~12.00±0.05 Fermentation process control (According to the fermentation time, auto- control pH fluent, at least10 parts) | pH value historical and trend curve analysis Acid, alkali dosage curve analysis Batch report form analysis Acid, alkali total dosage record Keep and deliver data |
| 2 | DO | 0-150±3%,Displaying precision: 0.1% It can be controlled by rev and feeding. Fermentation process control (According to the fermentation time, auto- control DO fluent, at least10 parts) | DO value historical and trend curve analysis Batch report form analysis Keep and deliver data |
| 3 | Antifoam | Automatic PID control and alarm Fermentation process control (According to the fermentation time, auto- control antifoam fluent, at least10 parts) | Antifoam value historical and trend curve analysis Foam error state record antifoam total dosage record Batch report form analysis Keep and deliver data |
| 4 | Rev | Automatic enactment and control(50~1200rpm±5‰) Fermentation process control (According to the fermentation time, auto- control rev fluent, at least10 parts) | Rev value historical and trend curve analysis Batch report form analysis Keep and deliver data |
| 5 | Temperature | Temperature of cooling water: +5ºC-60ºC±0.1ºC Fermentation process control (According to the fermentation time, auto- control temperature fluent, at least10 parts) | Temperature value historical and trend curve analysis Batch report form analysis Keep and deliver data |
| 6 | Feeding | PID automatic enactment and control Fermentation process control (According to the fermentation time, auto- control feeding fluent, at least10 parts) | Feeding value historical and trend curve analysis Feeding total dosage record Batch report form analysis Keep and deliver data |
| 7 | Pressure | Manual control, instrument display | |
| 8 | Air flux | Manual control, instrument display |
