Battery Analyzer for LiFePO4 Li-ion NiMH AGM Verl Gel

Product Description

BM200-32 2V-24V 10~100Ah Li-ion LiPo LiFePO4 AGM GEL NIMH Battery /Tester/Analyzer

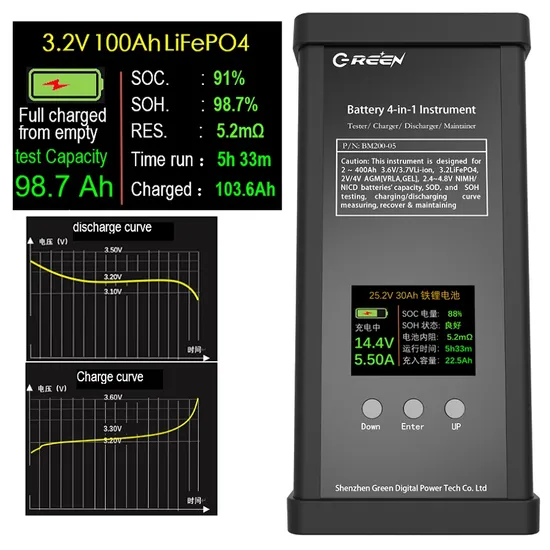

BM200-32 is an intelligent instrument that integrates the four functions of battery testing(analyzing), charging, discharging and maintenance. It is designed with a portable plastic shell, and with color TFT displayer and silicon touch keys.
The BM200-32 is a powerful assistant for electronic engineers. It can be used to perform performance testing, capacity testing, characteristic curve measurement, and activation and maintenance of long-term storage batteries for various commonly used rechargeable batteries.
BM200-32 is widely used for performance testing and routine maintenance of most rechargeable batteries in many portable electronics/electrical devices (such as smart phone, tablet PC, drone, e-bike, e-scooter, power tool, car …). Battery voltage range is 2V~29V capacity range 2~100Ah, and battery types cover Li-ion /LiFePO4 /Pb-Acid /NiMH.
Input of BM200-32 is AC100~240V, universal global voltage range. The adjustable range of output constant current charging current is 1A~10A ; The charging limit voltage and the discharge cut-off voltage can also be adjusted under 32V. It has a variety of abnormal safety protection measures such as battery reverse connection, wrong connection, short circuit, overvoltage, undervoltage, over-current and over-current heat.
BM200-32-B has Bluetooth function, through which users can view the historical charging and discharging data and curves with their phones or PC. BM200-32-D has 485 communication function, the main control is a PC computer, each module is slave mode. When multiple BM200 batteries are connected in series or parallel, up to 255 strings of large-capacity battery cells can be detected and maintained at the same time.
BM200-32 is desged for many applications, like:
1) Capacity measurement, internal resistance, and health testing of power and energy storage batteries (lithium ion, iron lithium, lead-acid, etc.)
2) Recovery, activation, measurement, and maintenance of the effective capacity of storage batteries that have been idle for more than 6 months
3) Capacity, internal resistance, and health testing of single or combined batteries for electric bicycles, tricycles, and electric sightseeing vehicles
Specifications:
Input voltage: 100~240V 50HZ
Suitable batteries: Pb-Acid, Li-Ion, LiFePO4, NiMH, NiCD....
Analyzer: battery voltage, internal resistance, capacity, SOC, SOH, charging/discharge curves
Charging method: smart charging process for different battery type.
Suitable capacity: 10Ah~400Ah for BM200-05 ; 2Ah~100Ah for BM200-32
Voltage range: BM200-05: 2V~5V; BM200-32: 2V~32V
Charge current: BM200-05: 3~30A, BM200-32: 1~10A
Discharge current: BM200-05: 0~20A, BM200-32: 0~10A
Temperature compensation: Automatically compensating
Voltage accuracy: +- 1.5%
Current accuracy: +- 5%
Capacity accuracy: +-5%
Abnormal protection: reversed, shorted, OLP, OTP, OLP, OCP, OVP
Bluetooth communication: optional function (- B has Bluetooth; -D has RS485 port, this is default )
Size and weight: 240 * 115 * 65mm, 1.2kg
Safety certification: CE, EN62368, EN61000
