China Supplier for Mobile Concrete Batching Plant/ Factory Direct Sale with Good Price

Product Description

YHZS MOBILE CONCRETE MIXING PLANT
Brief Introduction:
Mobile concrete batching plant is composed of concrete mixer, aggregate storage and weighing system, aggregate batching system, control system etc. The mobile concrete batching plant has advantages of easy installation, easy foundation and flexible for transporting.
Features:
1.This mobile mixing plant adopts the semi pulling structure with coupling pin included. It can be dragged by trailer. Meanwhile,
2.Low foundation cost. The mobile concrete batching plant has no need for special foundation.
3.Easy for transporting. The mobile concrete batching plant can be flexible transported from one project to another.
4.Quick installation and disassemble.the mobile concrete batching plant can be divided into several standard modules, and then be packed into containers

Model	YHZS25	YHZS35	YHZS50	YHZS75	YHZS90
Capacity	25m3/h	35m3/h	50m3/h	75m3/h	90m3/h
Mixing system	Twin shaft concrete mixer
Aggregate feeder	Belt conveyor
After-sale service	Installations & commissioning, operator training, maintaining & spare parts supply, technical support
Warranty	1 year (12 months after test running)
Concrete mixer	JS500	JS750	JS1000	JS1500	JS2000
Discharging volume	500L	750L	1000L	1500L	2000L
Mixing circle	72s
Max. mixing size	80/60mm
Aggregate Bins	4x4m3	4x5m3	4x6m3	4x7m3	4x8m3
Weighing system	Water, Cement, Additive
Control System	SIEMNS PLC+PC
Weighing precision	±1%
Air system	Air compressor
Control system type	Computer auto-control module (PLC can be optional item)

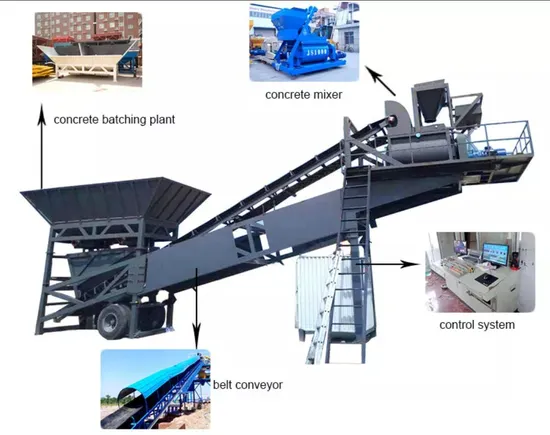

Mobile Integrated Concrete Batching Plant main configuration
