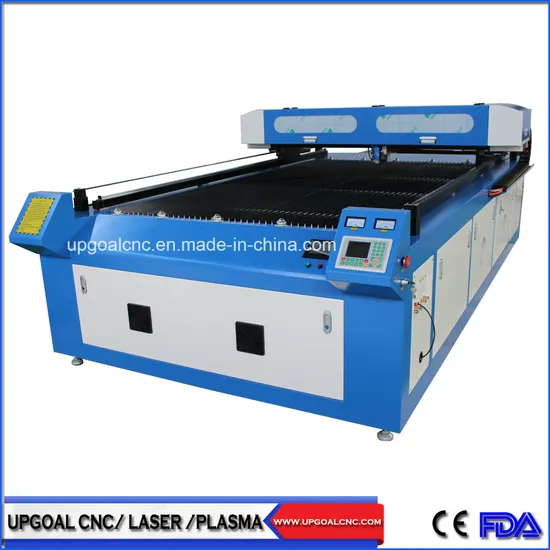

4*8 Feet Stainless Steel Wood Acrylic CO2 Laser Cutting Machine with Live Focusing System

Product Description

4*8 Feet Stainless Steel Wood Acrylic Co2 Laser Cutting Machine with Live Focusing System


Features
1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.
Equipped with metal&non-metal laser cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

2. Reci W6 seal Co2 laser tube, rated power 130W, maximum power 160W, strong cutting ability and long working life.

3. Adopting imported focus lens with high luminousness and mirror with high reflection ensure stable power transference and laser beam consistency.
4. Adopt 3phases Yako stepper driver with high dynamic response performance and loading capacity.
5. High strength cutting table, applicable for metal and non-metal cutting.
6. Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise High speed and precision with smooth cutting surface.

7. With advanced embedded RuiDa DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect.
8. Specialized metal using non-contact live focusing system, ensuring same cutting quality for whole working table, no need further processing for the fracture section, high efficiency, long life time and more stable.

9. With auto height controller for laser head, can track the metal material surface and adjust suitable focus length, ensuring the cutting quality.

10. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.
11. Industrial water chiller CW-5000 is equipped to ensure the machine can work last long time.
12. Has the oxygen control system when cutting metal materials.

Technical Parameters

Effective working area	1300*2500mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	W6 series, Reci, Beijing (Rated power: 130W, max. Power: 160W)
Working table	High strength knife strip
Oxygen control system	Yes
Laser head	Automatic torch height controller laser head structure for metal materials
Driver mode	3 phase stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa control system 6332M (Live focusing system)
Control software	MetalCut
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller, CW-5000
Water protection system	Yes
Blow-off system	Air pump for the laser head Air blower for the machine
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Voltage	AC 220V±10% 50/60Hz, single phase
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Certificate	CE/FDA

Applications
Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.
Reference Sample Photos

Reference Working Videos

https://upgoalcnc.en.made-in-china.comWxL-thbZRi1xro

For more information, just feel free to contact us!
