2500m Night Vision 4K 8.0MP Long Range Laser PTZ CCTV Camera

Product Description

Long Distance 2500m 6.0 ~ 300mm Lens 52x optical 8.0MP HD Network Laser PTZ Camera

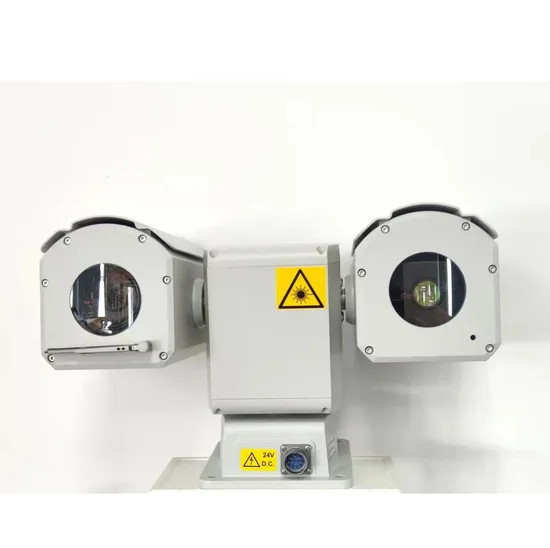

Real Picture:
Features: The first independent defogging and defrosting module to truly solve the lens fogging in the camera compartment caused by the temperature difference in the outdoor environment The camera compartment uses high-quality heating parts to make the entire compartment body work together to form an effective anti-fog and defogging pattern With self-locking stable device. To maximize the stability of camera shake. Adopt the integrated structure of the upper and lower spindles, so that the pan/tilt camera compartment and infrared compartment will not be bumpy and misaligned The high-speed rotation of the PTZ is more smooth, and the low-speed rotation has no jitter Ultra-high-strength aluminum alloy design, protection grade IP66 Infrared laser night vision supplement light. PTZ monitoring without blind spots RS485 Software upgrade online
Application:
110 policecar vehicle mobile law enforcement / fire emergency command / 120 emergency command system / road administration mobile patrol / urban management law enforcement / special vehicle mobile inspection / high-altitude point monitoring
Product Parameter:

PTZ Function
Pan preset speed	20°/s
Tilt preset speed	15°/s
Pan control speed	0°~20°/S
Tilt control speed	0°~15°/S
Pan range	360°endless rotation
Tilt range	+90° ~ -90°
Preset position accuracy	less than 0.1°
Preset positions,Tracking	255 positions 8 tracking
Control Way	RS485, Built-in PELCO D/P protocol, Baud Rate from 2400Bps to 19200Bps optional
Relative Humidity	Less than 90%
IP Grade	IP66
Working Temperature	-35° ~ +55°
Power Supply	AC24V 45W Max DC 24V Optional
Impact resistance requirements	≥4G
Wiper	Support
Installation	Variety of installation according to the environment
Weight	10kg
Laser Specification
Wave Length	808nm
Light Angle	1-30°
Light Power	10W
Night Vision	1500m

Camera Module Parameter

Optical parameters	Sensor	1/1.8" Progressive Scan CMOS
	Focal length	6-300mm,50x optical zoom
	Aperture value	F1.4 - F4.5
	Field of view	Horizontal 59-1.8°(Wide Angle-Telephoto)
	Close-up distance	10mm-1000mm(Wide Angle-Telephoto)
	Zoom speed	About 3s
	Day and night conversion mode	Dual filter switching synchronous image, automatic, color, black and white, timing, threshold control, flip
	Scanning system	Progressive Scan
Specification Set	Resolution	Network output:50Hz,25fps(3840 x 2160)(8.0MP) Network output:60Hz,30fps(3840 x 2160)(8.0MP)
	Illuminance	0.01Lux @(F1.5,AGC ON)Color ,0.005Lux @(F1.5,AGC ON)White black
	Video output	Network encoding output
	Image adjustment	Brightness, contrast, saturation, sharpness, chroma, etc. can be adjusted
	Image settings	Movement function can be adjusted through the client or IE browser
	General parameters	Area occlusion, anti-flicker, defogging, corridor mode, mirroring, flip, backlight compensation, glare suppression, exposure compensation, gain, dead pixel compensation, watch, power-down memory, pattern scanning
	ROI	4 area setting
	Focus mode	Auto/Manual/One-time focus
	Exposure mode	Auto Exposure/Aperture Priority/Shutter Priority/Manual Exposure
	Electronic shutter	1/25~1/100000
	White balance	Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium lamp/Fluorescent lamp
	Wide dynamic	Super wide dynamic, automatic wide dynamic, 0-100 digital adjustment
	Digital noise reduction	2D / 3D
	Lens initialization	Built-in
	Digital zoom	16 zoom
	Signal system	PAL/NSTC
Internet function	Storage function	Support MicroSD storage 128G (suggest class10)
	Smart function	Motion detection, video blocking, network disconnection, hard disk error, IP conflict, disk full
	Support protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,(IPv6 optional)
	Access protocol	ONVIF2.4,GB/T28181
	Audio compression standard	G.711a
	Video compression standard	H.265/H.264
	General function	Password protection, heartbeat, multi-user access control

Dimensions:(mm)
Package:
Application:
NOTE: We can make Analog, HD IP, AHD, SDI Output, we can customized it according to your special requirements.
