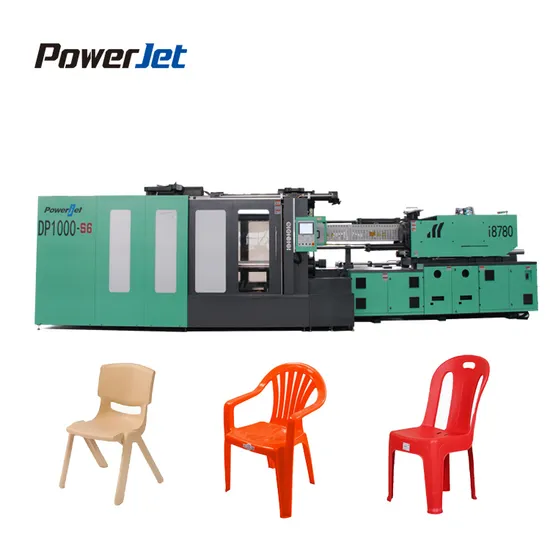

1000 Tons Big Size Plastic Chair Making Machine Injection Mould Moulding Machine Forfactory

Product Description

Details Images
High Efficiency
Low Energy Consumption
More Dedicated


The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable.


The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.

Innovative holding brake structure, adjusting the holding brake with high speed and reliability, low noise and accurate synchronization.

Four independent high-pressure oil cylinders innovative structure for quick and stable pressure rising and releasing, easy maintenance.
Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency.

Ultra-wide space of the mold clamping area, large core pulling space and easy operation.

The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient.
The movable platen adopts linear guider with low resistance, low energy consumption, stable moving and accurate positioning.

Equipped with servo electric charging, high speed rotate, low noise, low energy consumption, compared with traditional hydraulic motor charging, saving power cost more than 30%.

Specification

	DESCRIPTION	UNIT	DP1000-S6
CLAMPING UNIT	Clamping force	KN	10000
		Opening stroke	mm	2100/1300
		Max.daylight	mm	2600
		Space between bars	mm	1300*1100
		Max.mold height	mm	1300
		Min.mold height	mm	500
		Ejector stroke	mm	350
		Ejector force	KN	210
INJECTION UNIT	Screw diameter	mm	130
		Screw L/D Ratio	L/D	23.7
		Injection Pressure	MPa	193
		Shot volume	cm3	8960
		Shot weight (ps)	g	7996
				oz	282
		Injection rate	g/s	915
		Plasticizing capacity	g/s	138
		Screw stroke	mm	575
		Screw speed	rpm	115
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	52+60
		Heater power	KW	61
GENERAL	Oil tank capacity	L	1250
		Machine weight	T	44
		Machine dimensions (L*W*H)	m	9.5*3.4*2.9
