Good Maintenance Hydraulic Side-Shift Flail Mower

Product Description

Company Profile:
Changzhou Kaideli Machinery Co.,Ltd was founded in 2010. It locates at Changzhou city of Jiangsu province, which is about one hour far from Shanghai city by fast train. Our company is a professional manufacturer for farm machinery, and now we have 7600 m² space factory and more than 80 workers, including more than 5 technicians with a 210 acres of agricultural machinery and agronomic experimental bases, to test product performance in strict accordance with scientific norms for getting better quality and faster delivery.
Main Products:
Our company has eight categories of products for (Agriculture, orchards, gardens, animal husbandry, minor works, vegetables, forests, snow removal, etc.) which over 300 models of various agricultural implements, such as backhoe, loaders, rotary tillers, post hole digger, mower, snow blade, plough and other kinds to export to the 53 countries in Europe, Australia, America, south Africa, etc.
Enterprise awards and patented technology:
In November 2016, we were awarded "High-tech Enterprise" in Jiangsu Province. It is also a small and medium-sized technology innovation enterprise in Changzhou City, a private technology enterprise, and an excellent industrial enterprise in Yaoguan Town, Changzhou.
In addition, our company has also won 69 national patents, including 3 invention patents, 58 utility model patents and 8 other patents.
Product Description:

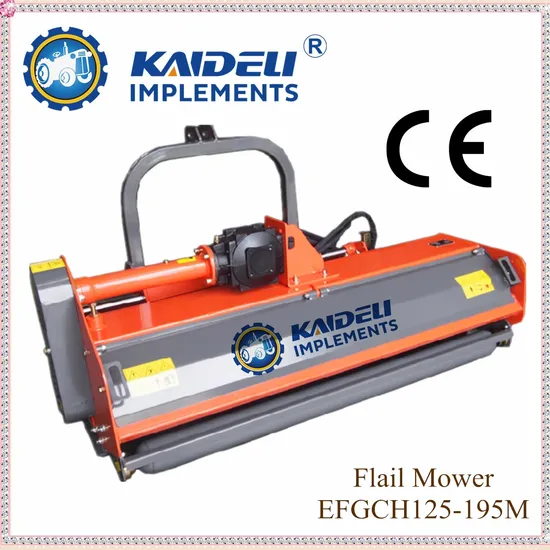

The EFGC & EFGCH Series are heavy duty flail mower that are strong and reliable for heavier work loads~ The low weight and power requirement of the flail mowers make it suitable for use with small to medium sized tractor~ The EFGC & EFGCH range of flail mowers are fitted with a high power 50hp gear box and robust drive line to give hassle free mowing~ Cutting height controlled by adjustable skids~ Height strength mulching blades~ Safety flaps~ Extra strong and designed with safety in mind~ Support leg for storage~ Solid hitch.
Specifications:

Model	EFGCH-105M	EFGCH-115M	EFGCH-125M	EFGCH-135M	EFGCH-145M
Structure Weight	285kg	300kg	312kg	327kg	352kg
Working Width	1020mm	1120mm	1220mm	1320mm	1420mm
PTO Turning Speed	540r/min	540r/min	540r/min	540r/min	540r/min
Flail Type	Y Blade / Hammer
Number Of Flails	Hammer: 18 / Y Blade: 36	Hammer: 18 / Y Blade: 36	Hammer: 18 / Y Blade: 36	Hammer: 22 / Y Blade: 44	Hammer: 22 / Y Blade: 44
Tractor HP	18-25hp	15-25hp	18-25hp	20-30hp	30-35hp
Shift Distance	170mm	170mm	348mm	348mm	348mm

Model	EFGCH-155M	EFGCH-165M	EFGCH-175M	EFGCH-185M	EFGCH-195M
Structure Weight	332kg	347kg	359kg	385kg	412kg
Working Width	1520mm	1620mm	1720mm	1820mm	1920mm
PTO Turning Speed	540r/min	540r/min	540r/min	540r/min	540r/min
Flail Type	Y Blade / Hammer
Number Of Flails	Hammer: 22 / Y Blade: 44	Hammer: 26 / Y Blade: 52	Hammer: 26 / Y Blade: 52	Hammer: 32 / Y Blade: 64	Hammer: 32 / Y Blade: 64
Tractor HP	30-40hp	35-45hp	40-50hp	45-85hp	45-85hp
Shift Distance	348mm	348mm	348mm	348mm	348mm

Factory and Production Situation:
CE Certification:
Packing&Loading:
Your Professional Manufacturer of Tractor &ATV,UTV Implements (front end loader, backhoe, mower, rotary tiller, wood chipper,snow plow and so on, aslo OEM service provided)
Changzhou Kaideli Machinery Co.,Ltd
