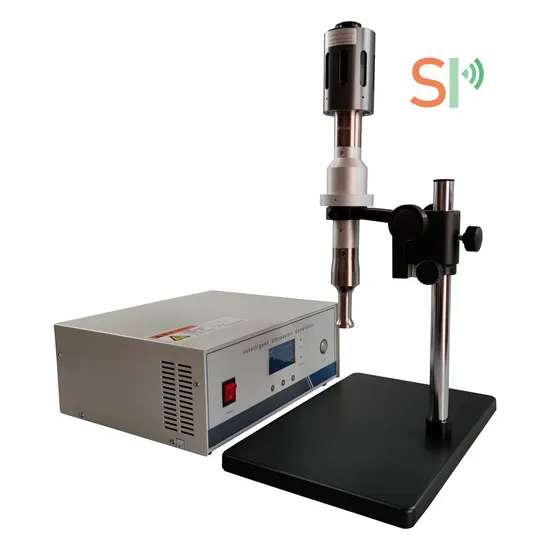

Lab Ultrasonic Homgenizer For Plant Oil Emulsification

Product Description

Product Description Under the action of ultrasonic energy, two or more immiscible liquids are subjected to intense agitation, leading to the dispersion of one liquid into another to form an emulsion-like mixture. This process is known as ultrasonic emulsification. One of its notable advantages is that it eliminates the need for traditional emulsifiers. Additionally, ultrasonic emulsification allows precise control over the type of emulsion produced, resulting in enhanced stability. Some emulsions prepared through this method can remain stable for several months to over half a year. Moreover, ultrasonic emulsification enables the creation of emulsions with higher concentrations compared to conventional methods; pure emulsions can exceed 30% concentration, while emulsions with added emulsifiers can reach concentrations as high as 70%. This technique can also produce emulsions that are difficult or impossible to achieve through conventional means. Product Parameters

Model	SPS20-500S	SPS20-1000S	SPS20-1600S	SPS20-2000	SPS20-3000	SPS20-3000Z
Frequency	20Khz	20Khz	20Khz	20Khz	20Khz	20Khz
Power	500 W	1000 W	1600 W	2000W	3000W	3000 W
Voltage	220V	220V	220V	220V	220V	220V
Pressure	Normal	Normal	Normal	35 MPa	35 MPa	35 MPa
Intensity of sound	>10 W/cm²	>10 W/cm²	>10 W/cm²	>40 W/cm²	>60 W/cm²	>60 W/cm²
Processing capacity (L/H)	0.5-2.0	1.0-4.0	10.0	20.0	50.0	100.0
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Generator	Digital type	Digital type	Digital type	Digital type	Digital type	Digital type

Application 1)Ultrasonic treatment of chemical extraction, biodiesel production, organic synthesis, treatment of microorganisms, degradation of toxic organic pollutants, chemical reaction rate and yield, catalytic efficiency of catalysts, biodegradation treatment, ultrasonic anti-scaling, biological cell comminution, dispersion and coagulation A local small environment that is very beneficial to the reaction process can greatly increase the reaction rate and reduce the reaction conditions
2)Comparison of effects in various application areas

Application field	Effect and Impact
Chinese medicine extraction	Adding ultrasound equipment can increase the leaching rate by 30-50%
Ballast water treatment	Cooperate with ultraviolet light to assist in killing algae
Food sterilization	Adding an ultrasound system to the original process can reduce colony count by 30%
Emulsification	Instead of high shear emulsification, emulsified particle size 1um
High pressure high temperature container cleaning	Thoroughly solve the problem of filter, silt, blockage, etc.
Fine particle dispersion	Fine particles agglomerated in the dispersion
Biodiesel production	Adding this ultrasound system to the original device can increase the original output by about 30%.
Oil industry application	Crude oil dehydration, crude oil demulsification
Biochemistry	Cell disruption

Emulsification Features: 1. The emulsification quality is high. The average droplet size of the formed emulsion is small, which can reach 0.2~2um. The droplet size distribution range is narrow, up to 0.1~10um. The concentration is high, the concentration of pure emulsion can reach 30%, adding emulsifier can reach 70%.
2. The emulsification is stable, you can produce stable emulsions without or with less emulsifiers, and some can be stable for several months or even more than half a year, with low energy consumption, high production efficiency and low cost.
3. The type of emulsion can be controlled. Under certain sound field conditions, both oil-in-water and water-in-oil emulsions can be prepared. However, it is impossible to achieve mechanical emulsification. Only the properties of emulsifiers can control the type of emulsion. For example, when toluene is emulsified in water, one type of emulsion can be formed under low sound intensity conditions, and another type of emulsion can be formed under high sound intensity conditions.
4. Low power required to produce emulsion.
5. The type of emulsion can be controlled. Using ultrasonic emulsification, under certain sound field conditions, both O/W (oil-in-water) and W/O (water-in-oil) emulsions can be prepared; however, mechanical emulsification is impossible, and only the properties of the emulsifier can control the emulsion type. Characteristics 1. Core parts with Titanium alloy materials
2. Ultrasonic probe with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability and high, long working hours, more efficiency
7. Provide consulting services and custom reactor designs Reviews The ultrasonic sonicator works very well.
